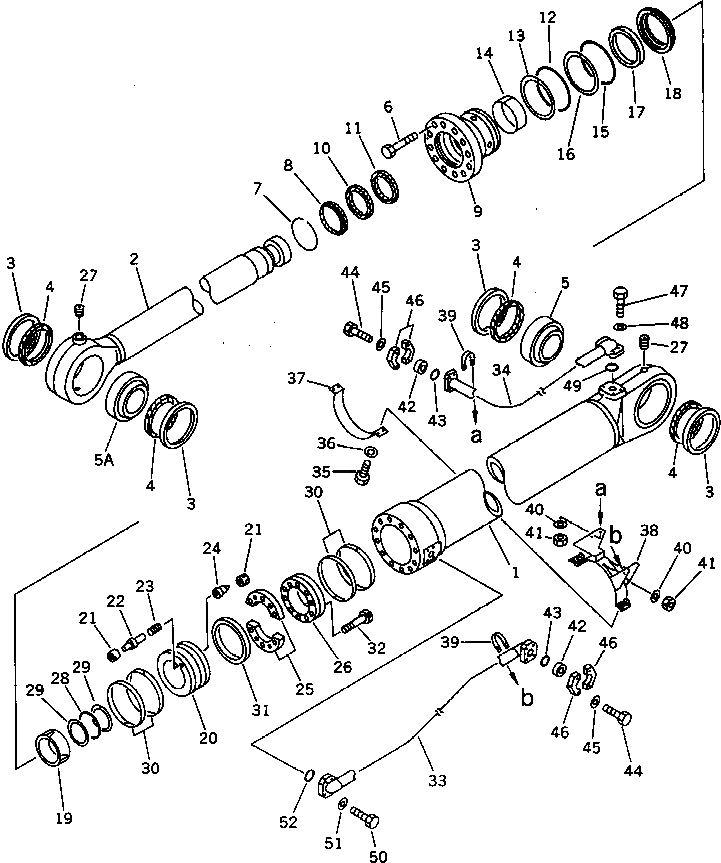

Запчасти Komatsu PC1000-1 ЦИЛИНДР КОВША (SALTY МЕСТН. СПЕЦ-Я.) (ДЛЯ ЯПОН.)(№-) РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)

G-1

21N-63-X6050

CYLINDER GROUP

|1

21N-63-06050

CYLINDER ASS'Y

1

21N-63-77340

CYLINDER

2

21N-63-77320

ROD

3

707-46-14020

BUSHING

4

21T-72-15870

SEAL,DUST

5

707-46-13010

BUSHING

5A

707-46-14010

BUSHING

6

01010-52790

BOLT

7

707-75-14520

RING,SNAP

8

707-56-14080

SEAL,DUST

9

707-28-20650

HEAD,CYLINDER

10

707-51-14130

PACKING,ROD

11

707-51-14630

RING,BUFFER

12

07000-15195

O-RING

13

707-35-92050

RING,BACK-UP

14

707-52-91150

BUSHING

15

07000-15195

O-RING

16

07001-05195

RING,BACK-UP

17

707-71-11450

RING

18

707-71-31460

COLLAR

19

707-71-51471

PLUNGER

|20

707-91-02062

PISTON ASS'Y

20

PISTON

21

SEAT

22

VALVE,PISTON

23

SPRING

24

VALVE,PISTON

25

707-40-20970

SPACER

26

707-37-22020

PISTON

27

07043-00108

PLUG

28

07000-12115

O-RING

29

707-35-52860

RING,BACK-UP

30

707-39-20820

RING,WEAR

31

707-44-20180

RING,PISTON

32

01252-31490

BOLT

33

21N-63-77370

TUBE

34

21N-63-77380

TUBE

35

01010-51240

BOLT

36

01643-31232

WASHER

37

707-88-95210

BAND

38

21N-63-77390

BRACKET

39

07283-24346

CLIP

40

01643-31032

WASHER

41

01599-01011

NUT

42

07378-11410

HEAD

43

07000-13048

O-RING

44

01010-41455

BOLT

45

01643-31445

WASHER

46

07371-51470

FLANGE

47

01010-51450

BOLT

48

01643-31445

WASHER

49

07000-13048

O-RING

50

01010-51280

BOLT

51

01640-31232

WASHER

52

07000-13038

O-RING
