Запчасти Komatsu PC1000-1 ЦИЛИНДР КОВША (ДЛЯ УДЛИНН. РУКОЯТИ) РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)

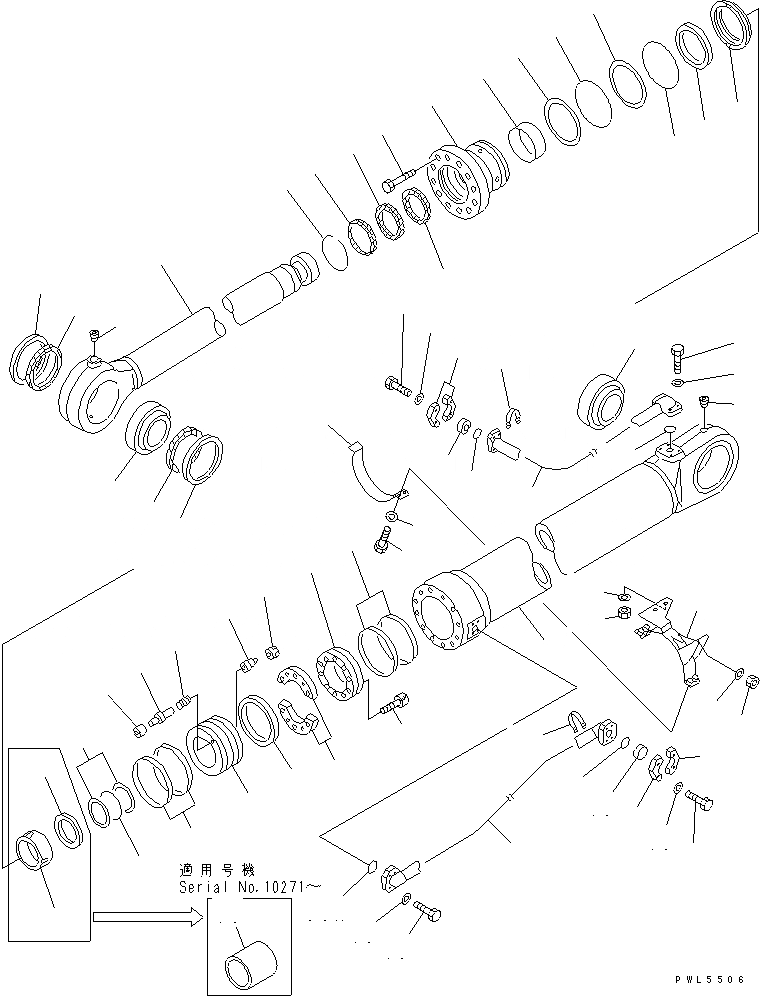

Схема запчастей Komatsu PC1000-1 - ЦИЛИНДР КОВША (ДЛЯ УДЛИНН. РУКОЯТИ) РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)
1
2
3
3
4
4
5
5A
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
19A
20
21
22
22
23
24
25
26
27
28
28
29
30
30
31
32
33
33A
34
35
36
37
38
39
40
40
41
41
42
42
43
43
44
44
45
45
46
46
47
47
47
48
49
50
51

Артикул

Название

Примечание

Количество

G-1

21N-63-X2052

CYLINDER GROUP

G-1

21N-63-X2051

CYLINDER GROUP

G-1

21N-63-X2050

CYLINDER GROUP

|1

21N-63-02052

CYLINDER ASS'Y

|1

21N-63-02051

CYLINDER ASS'Y

|1

21N-63-02050

CYLINDER ASS'Y

1

21N-63-72241

CYLINDER

|1

21N-63-72240

CYLINDER

2

21N-63-72221

ROD

|2

21N-63-72220

ROD

3

21T-72-15860

BUSHING

4

21T-72-15870

SEAL,DUST (KIT)

5

707-46-14010

BUSHING

5A

707-46-13010

BUSHING

6

01010-82790

BOLT

7

07179-14160

RING,SNAP

|7

707-75-14012

RING,SNAP

8

198-63-93170

SEAL,DUST (KIT)

9

707-28-20550

HEAD,CYLINDER

|9

707-28-20540

HEAD,CYLINDER

10

707-51-14130

PACKING,ROD (KIT)

11

707-51-14630

RING,BUFFER (KIT)

12

07000-15195

O-RING (KIT)

13

707-35-92050

RING,BACK-UP (KIT)

14

707-52-91150

BUSHING

|14

707-52-11410

BUSHING

15

07000-15195

O-RING (KIT)

16

07001-05195

RING,BACK-UP (KIT)

17

707-71-11450

RING

18

707-71-31460

COLLAR

19

707-71-51471

PLUNGER

|19

707-71-51470

PLUNGER

|19

707-71-51460

PLUNGER

19A

707-40-20910

RETAINER

20

707-35-52860

RING,BACK-UP (KIT)

|21

707-91-02062

PISTON ASS'Y

|21

707-91-02061

PISTON ASS'Y

21

PISTON

|21

PISTON

22

SEAT

23

VALVE,PISTON

24

SPRING

25

VALVE,PISTON

26

707-40-20970

SPACER

27

707-37-20020

PISTON

28

07043-00108

PLUG

29

07000-12115

O-RING (KIT)

30

707-39-20820

RING,WEAR (KIT)

31

707-44-20180

RING,PISTON (KIT)

|31

707-44-20080

RING,PISTON (KIT)

32

01252-31490

BOLT

33

07000-13048

O-RING (KIT)

33A

07000-13038

O-RING (KIT)

34

21N-63-72271

TUBE

|34

21N-63-72270

TUBE

35

21N-63-72280

TUBE

36

01010-81240

BOLT

37

01643-31232

WASHER

38

707-88-96110

BAND

39

707-88-96090

BRACKET

40

07283-24346

CLIP

41

01643-31032

WASHER

42

01599-01011

NUT

43

07378-11410

HEAD

44

07000-13048

O-RING (KIT)

45

01010-81455

BOLT

46

01643-31445

WASHER

47

07371-51470

FLANGE

48

01010-81280

BOLT

49

01643-31232

WASHER

50

01010-81450

BOLT

51

01643-31445

WASHER

|K

707-99-77230

SERVICE KIT

Выбрано товаров: 73
