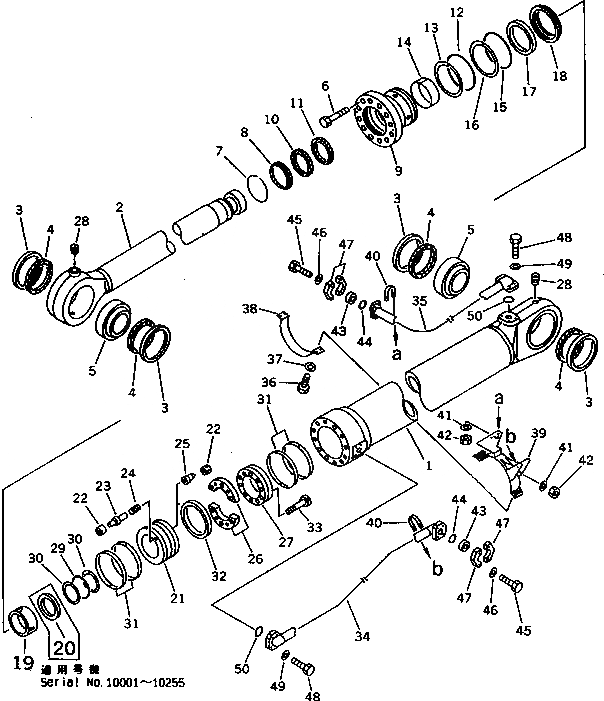

Запчасти Komatsu PC1000-1 ЦИЛИНДР КОВША РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)
№
Артикул
Название
Примечание
Количество
G-1
21N-63-X2041
CYLINDER GROUP
|G
21N-63-X2040
CYLINDER GROUP
|1
21N-63-02041
CYLINDER ASS'Y
|1
21N-63-02040
CYLINDER ASS'Y
1
21N-63-72140
CYLINDER
2
21N-63-72120
ROD
3
21T-72-15860
BUSHING
4
21T-72-15870
SEAL,DUST (KIT)
5
707-46-14010
BUSHING
6
01010-83095
BOLT
7
07179-14180
RING,SNAP
|7
707-75-16012
RING,SNAP
8
566-63-22241
SEAL,DUST (KIT)
9
707-28-22520
HEAD,CYLINDER
10
707-51-16130
PACKING,ROD (KIT)
11
707-51-16630
RING,BUFFER (KIT)
12
07000-15220
O-RING (KIT)
13
707-35-92300
RING,BACK-UP (KIT)
14
707-52-91350
BUSHING
|14
707-52-11610
BUSHING
15
07000-15220
O-RING (KIT)
16
07001-05220
RING,BACK-UP (KIT)
17
707-71-11710
RING
18
707-71-31720
COLLAR
19
707-71-51732
PLUNGER
|19
707-71-51731
PLUNGER
20
707-40-22910
RETAINER
|20
707-91-02211
PISTON SUB ASS'Y
|21
707-91-02210
PISTON SUB ASS'Y
21
PISTON
|21
PISTON
22
SEAT
23
VALVE,PISTON
24
SPRING
25
VALVE,PISTON
26
707-40-22970
SPACER
27
707-37-22030
PISTON
28
07043-00108
PLUG
29
07000-15135
O-RING (KIT)
30
707-35-91440
RING,BACK-UP (KIT)
31
707-39-22820
RING,WEAR (KIT)
32
707-44-22280
RING,PISTON (KIT)
|32
707-44-22080
RING,PISTON (KIT)
33
01252-31695
BOLT
34
21N-62-18370
TUBE
35
21N-62-18360
TUBE
36
01010-51240
BOLT
37
01643-31232
WASHER
38
21N-62-18440
BAND
39
21N-62-18420
BRACKET
40
07283-24346
CLIP
41
01643-31032
WASHER
42
01599-01011
NUT
43
07378-11410
HEAD
44
07000-13048
O-RING
45
01010-51455
BOLT
46
01643-31445
WASHER
47
07371-51470
FLANGE
48
01010-51450
BOLT
49
01643-31445
WASHER
50
07000-13048
O-RING (KIT)
|51
707-99-78630
SERVICE KIT
Выбрано товаров: 62
