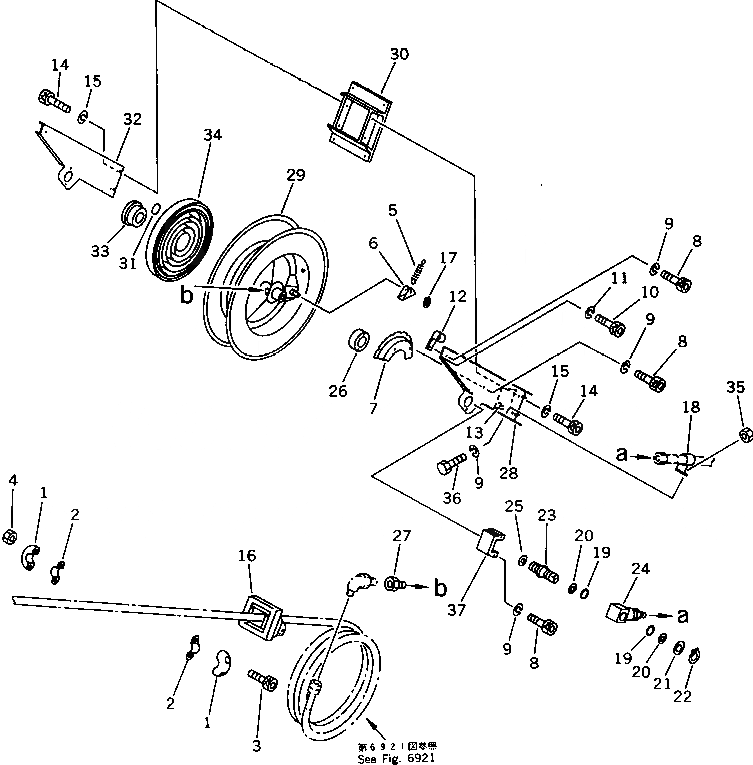

Запчасти Komatsu PC1000-1 СМАЗ. REEL УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

G-1

209-68-X1000

GREASE PUMP GROUP

|1

209-68-51240

HOSE REEL ASS'Y

1

YU770199-4

STOPPER

2

YU702062-4

BAND

3

YU619154-0

BOLT

4

YU177012-1

NUT

5

YU707944-4

SPRING

6

YU707942-4

STOPPER

7

YU707954-3

CAM,STOPPER

8

YU681677-4

BOLT

9

YU631418-1

WASHER,SPRING

10

YU619073-4

BOLT

11

YU631417-1

WASHER,SPRING

12

YUA57634

CLIP

13

YU790372-4

LABEL

14

YU619145-0

BOLT

15

YU631420-1

WASHER,SPRING

16

YU831174-3

PLATE,ROLLER

17

YU640006-0

O-RING

18

YU709484-4

HOLDER

19

YU640020-0

O-RING

20

YU643680-0

RING,BACK-UP

21

YU705893-4

WASHER

22

YU630695-0

RETAINER

23

YU708673-4

ADAPTER

24

YU708831-4

SWIVEL

25

YU770951-4

PACKING

26

YU708832-4

BEARING

27

YU680109-4

ADAPTER,UNION

28

YU708833-3

ARM

29

YU831089-2

DRUM

30

YU708834-4

BRACKET

31

YU790371-4

LABEL

32

YU708835-3

ARM

33

YU708671-4

BEARING

34

YU801941-4

SPRING

35

YU627010-1

NUT

36

YU611095-1

BOLT

37

YU708830-4

STOPPER
