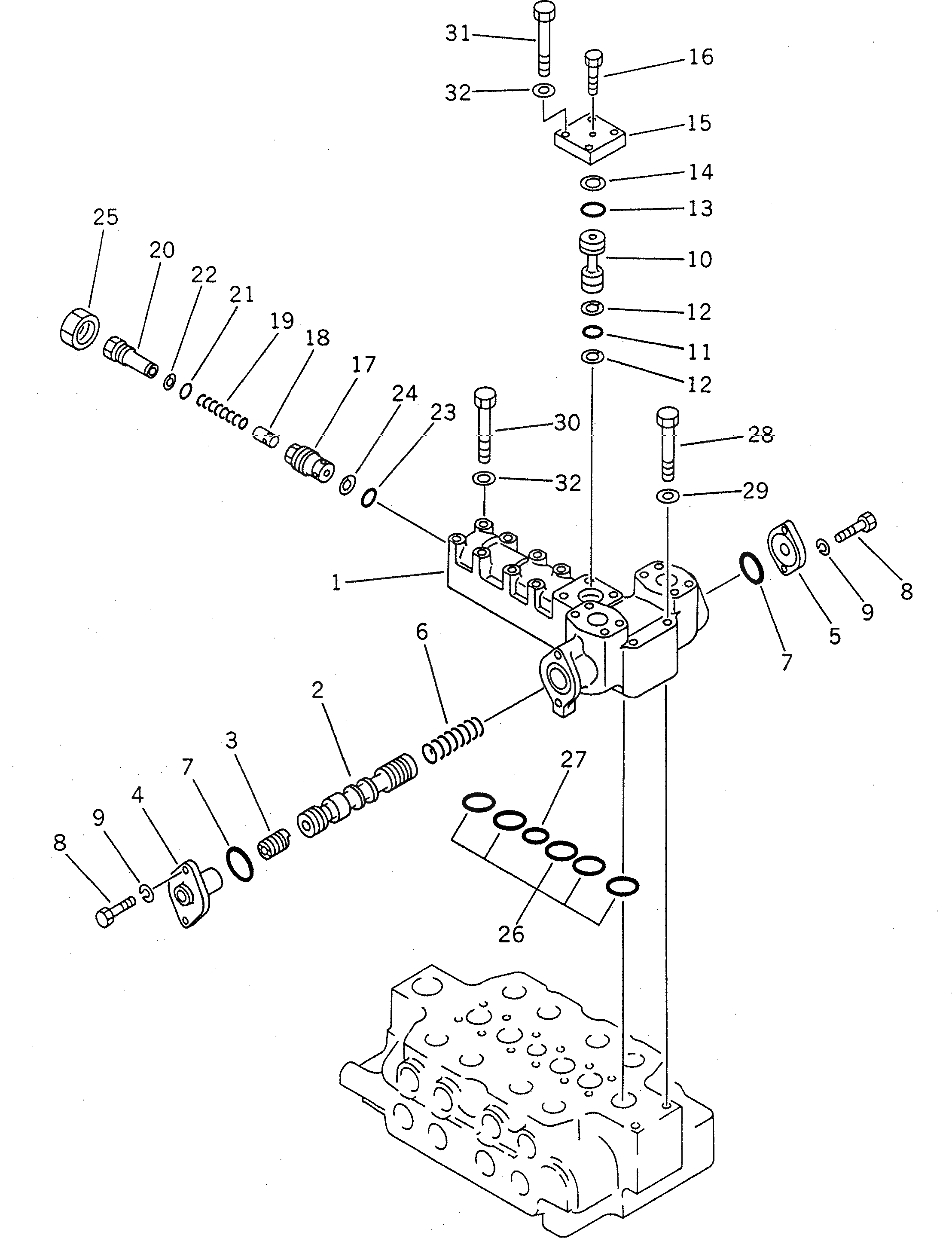

Запчасти Komatsu PC1000-1 ПРАВ. УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-14-91303

VALVE ASS'Y

|1

709-14-91302

VALVE ASS'Y

|1

709-14-91301

VALVE ASS'Y

|1

709-10-91501

VALVE ASS'Y

|1

709-10-91500

VALVE ASS'Y

1

BODY

|1

BODY

2

SPOOL

3

PISTON

4

SLEEVE

5

709-10-91240

FLANGE

6

709-10-91230

SPRING

7

07000-02055

O-RING

8

01010-51030

BOLT

9

01602-21030

WASHER,SPRING

10

709-10-91131

PLUG

|10

709-10-91130

PLUG

11

07000-13030

O-RING

12

07001-03030

RING,BACK-UP

13

07000-13035

O-RING

14

07001-03035

RING,BACK-UP

15

709-10-91140

PLATE

16

01010-50835

BOLT

17

709-10-91350

SLEEVE

18

706-73-70140

VALVE,CHECK

19

706-73-70150

SPRING

20

709-74-92450

PLUG

21

07000-12010

O-RING

22

07001-02010

RING,BACK-UP

23

700-93-11320

O-RING

24

700-93-11330

RING,BACK-UP

25

709-74-92460

NUT

26

07000-13048

O-RING

27

07000-13040

O-RING

28

01011-51425

BOLT

29

01643-31445

WASHER

30

01011-51215

BOLT

31

01011-51250

BOLT

32

01643-31232

WASHER
