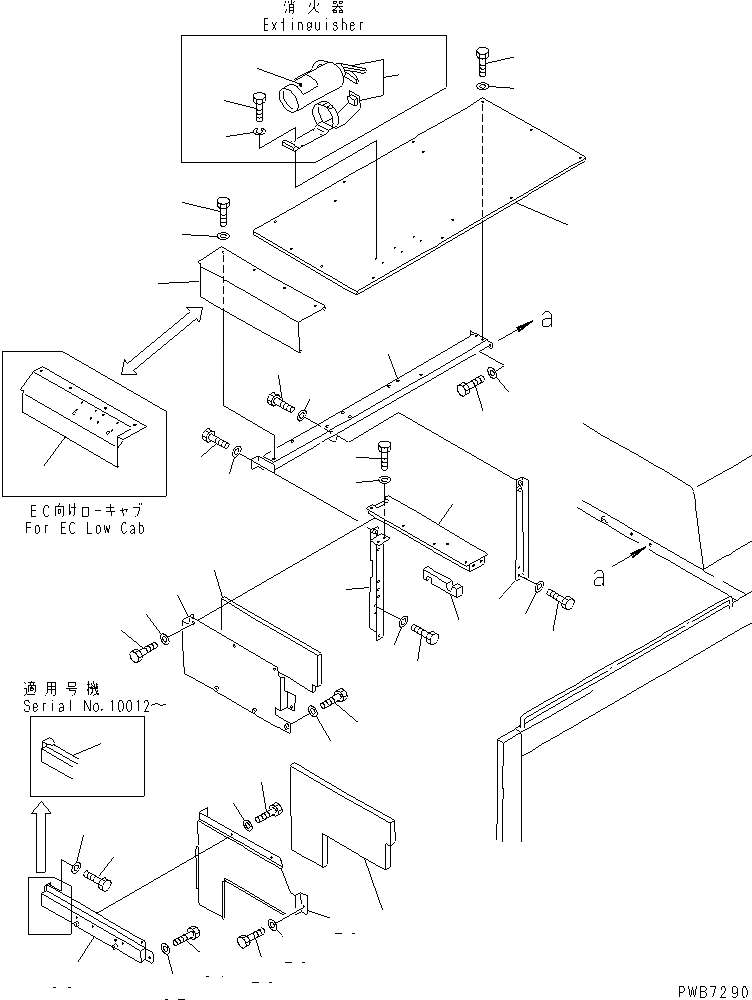

Запчасти Komatsu PC1000-1 КРЫШКАAND РАМА¤ ЛЕВ. ЧАСТИ КОРПУСА

1

21N-54-11420

COVER

|1

21N-54-14420

COVER,(FOR EC)

2

01010-51230

BOLT

3

01643-31232

WASHER

4

21N-54-11411

COVER

|4

21N-54-14370

COVER,(FOR EC LOW CAB)

5

01010-51230

BOLT

6

01643-31232

WASHER

7

21N-54-11730

BRACKET

8

01010-51230

BOLT

9

01643-31232

WASHER

10

21N-54-11711

BRACKET

11

21N-54-11880

SHEET

12

01010-51230

BOLT

13

01643-31232

WASHER

14

21N-54-11720

BRACKET

15

01010-51230

BOLT

16

01643-31232

WASHER

17

01010-51225

BOLT

18

01643-31232

WASHER

19

21N-54-11741

BRACKET

|19

21N-54-11740

BRACKET

20

01010-51225

BOLT

21

01643-31232

WASHER

22

21N-54-11511

COVER

23

209-54-56370

SHEET

24

01010-51230

BOLT

25

01643-31232

WASHER

26

21N-54-11531

COVER

27

21N-54-11541

SHEET

28

01010-51230

BOLT

29

01643-31232

WASHER

30

21N-54-11891

FRAME

|30

21N-54-11890

FRAME

31

01010-51225

BOLT

32

01643-31232

WASHER

33

01010-51235

BOLT

34

01643-31232

WASHER

G-1

21N-54-X4600

EXTINGUISHER GROUP

35

09495-00010

EXTINGUISHER,(JAPANEAS)

|35

09495-40010

EXTINGUISHER,(ENGLISH)

|35

09495-31010

EXTINGUISHER,(INDONESIAN)

36

09495-40210

PLATE,(ENGLISH)

37

01010-50616

BOLT

38

01602-20619

WASHER
