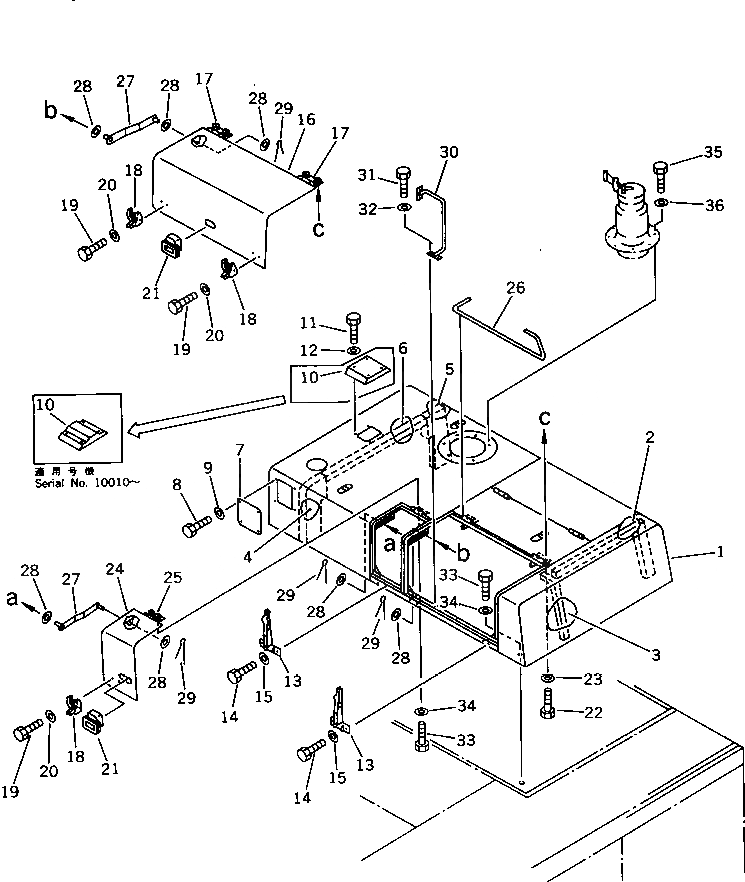

Запчасти Komatsu PC1000-1 КАПОТ ЧАСТИ КОРПУСА
№
Артикул
Название
Примечание
Количество
1
21N-54-11112
HOOD
|1
21N-54-11111
HOOD
2
21N-54-11180
SEAL
3
21N-54-11190
SEAL
4
21N-54-11151
SEAL
|4
21N-54-11150
SEAL
5
21N-54-11161
SEAL
|5
21N-54-11160
SEAL
6
21N-54-11141
SEAL
|6
21N-54-11140
SEAL
7
21N-54-11130
COVER
8
01010-51230
BOLT
9
01643-31232
WASHER
10
21N-54-11241
COVER
|10
21N-54-11240
COVER
11
01010-51230
BOLT
12
01643-31232
WASHER
13
205-54-76530
CATCHER
14
01010-50825
BOLT
15
01643-30823
WASHER
16
209-54-53121
COVER
17
205-54-64160
HINGE (WELDED)
18
205-54-67660
SUPPORT
19
01010-50825
BOLT
20
01643-30823
WASHER
21
209-54-12280
HANDLE
22
01010-51230
BOLT
23
01643-31232
WASHER
24
21N-54-11230
COVER
25
205-54-64160
HINGE (WELDED)
26
208-54-12210
BAR,TORSION
27
209-54-53151
STAY
28
01643-31645
WASHER
29
04050-14028
PIN,COTTER
30
21N-54-11170
RAIL,HAND
31
01010-51230
BOLT
32
01643-31232
WASHER
33
01010-51230
BOLT
34
01643-31232
WASHER
35
01010-51235
BOLT
|35
01010-51230
BOLT
36
01643-31232
WASHER
Выбрано товаров: 42
