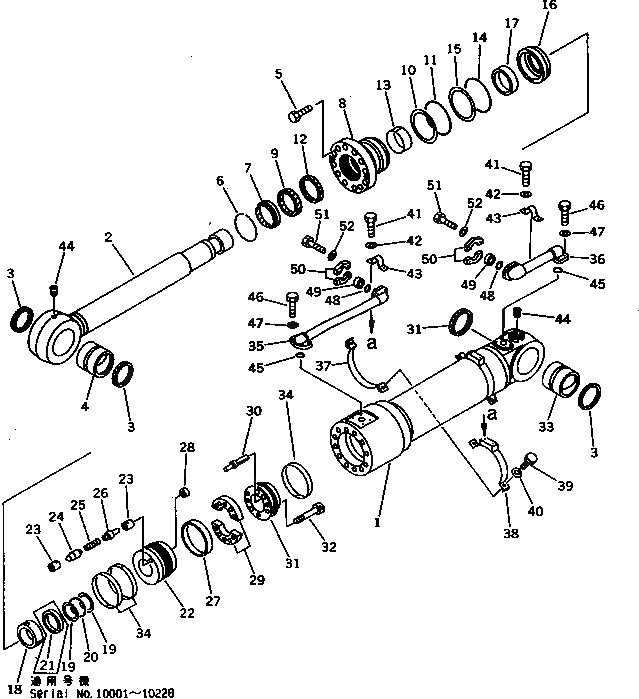

Запчасти Komatsu PC1000-1 НИЖН. ЦИЛИНДР РАБОЧЕЕ ОБОРУДОВАНИЕ (ПОГРУЗ.)
№
Артикул
Название
Примечание
Количество
G-1
21N-63-X3072
CYLINDER GROUP,L.H.
G-1
21N-63-X3071
CYLINDER GROUP,L.H.
G-2
21N-63-X3082
CYLINDER GROUP,R.H.
G-2
21N-63-X3081
CYLINDER GROUP,R.H.
|$5
21N-63-03072
CYLINDER ASS'Y
|$6
21N-63-03071
CYLINDER ASS'Y
1
21N-63-96141
CYLINDER
2
21N-63-96121
ROD
3
07145-00090
SEAL,DUST (KIT)
4
707-76-90040
BUSHING
5
01010-51860
BOLT
6
07179-13104
RING,SNAP
6
707-75-90012
RING,SNAP
7
195-63-94170
SEAL,DUST (KIT)
8
707-28-14511
HEAD,CYLINDER
9
707-51-90130
PACKING,ROD (KIT)
10
707-35-91440
RING,BACK-UP (KIT)
11
07000-15135
O-RING (KIT)
12
707-51-90630
RING,BUFFER (KIT)
13
07177-09040
BUSHING
14
07000-15135
O-RING (KIT)
15
07001-05135
RING,BACK-UP (KIT)
16
707-71-30970
COLLAR
17
707-71-10950
RING
18
707-71-50531
PLUNGER
18
707-71-50530
PLUNGER
19
707-35-52910
RING,BACK-UP (KIT)
20
07000-12070
O-RING (KIT)
21
707-40-14910
RETAINER
|$30
707-91-01420
PISTON SUB ASS'Y
|$31
707-91-01410
PISTON SUB ASS'Y
22
PISTON
22
PISTON
23
SEAT
24
VALVE,PISTON
25
SPRING
26
VALVE,PISTON
27
707-44-14180
RING,PISTON (KIT)
27
707-44-14080
RING,PISTON (KIT)
28
707-83-11070
COLLAR
29
707-40-14970
SPACER
30
707-83-11040
ROD,VALVE
31
707-37-14030
PISTON
32
01252-31055
BOLT
33
207-63-76170
BUSHING
34
707-39-14820
RING,WEAR (KIT)
35
21N-63-96170
TUBE,L.H.
35
21N-63-96270
TUBE,R.H.
36
21N-62-13750
TUBE,L.H.
36
21N-62-13740
TUBE,R.H.
37
209-62-53660
BAND
38
21N-62-13640
BRACKET
39
01010-51035
BOLT
40
01643-31032
WASHER
41
01010-51020
BOLT
42
01643-31032
WASHER
43
07282-03411
CLAMP
44
07043-00108
PLUG
45
07000-13035
O-RING (KIT)
46
01010-51060
BOLT
47
01643-31032
WASHER
48
07000-13032
O-RING (KIT)
49
07378-11000
HEAD
50
07371-31049
FLANGE
51
07372-21035
BOLT
52
01643-51032
WASHER
|$68
707-99-56310
SERVICE KIT
Выбрано товаров: 67
