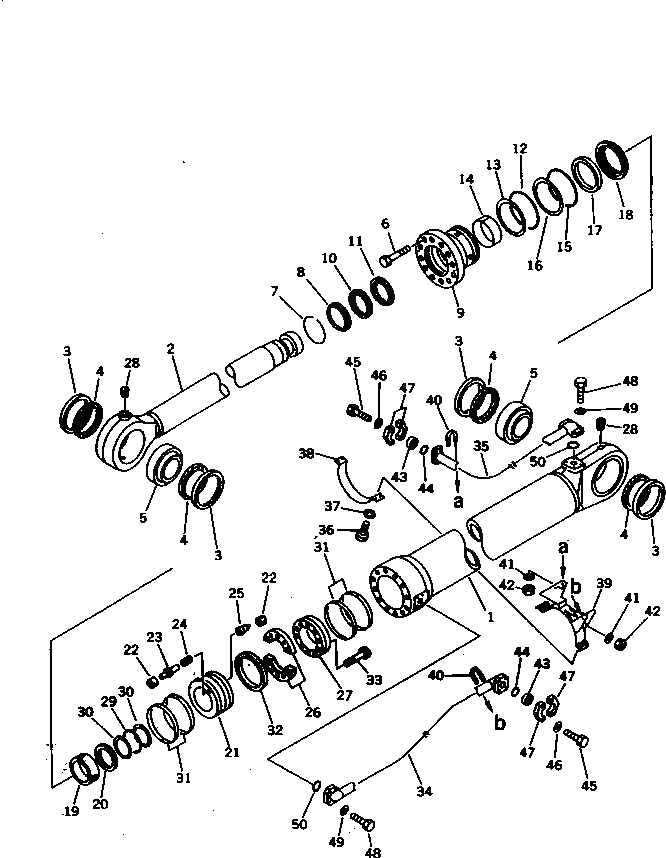

Запчасти Komatsu PC1000-1 ЦИЛИНДР КОВША (SALTY МЕСТН. СПЕЦ-Я.) (КРОМЕ ЯПОН.) РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)

G-1

21N-63-X6040

CYLINDER GROUP

|$2

21N-63-06040

CYLINDER ASS'Y

1

21N-63-77140

CYLINDER

2

21N-63-77120

ROD

3

707-46-14020

BUSHING

4

21T-72-15870

SEAL,DUST

5

707-46-14010

BUSHING

6

01010-83095

BOLT

7

707-75-16520

RING,SNAP

8

707-56-16080

SEAL,DUST

9

707-28-22620

HEAD,CYLINDER

10

707-51-16130

PACKING,ROD

11

707-51-16630

RING,BUFFER

12

07000-15220

O-RING

13

707-35-92300

RING,BACK-UP

14

707-52-11610

BUSHING

15

07000-15220

O-RING

16

07001-05220

RING,BACK-UP

17

707-71-11710

RING

18

707-71-31720

COLLAR

19

707-71-51731

PLUNGER

20

707-40-22910

RETAINER

|$23

707-91-02211

PISTON SUB ASS'Y

21

PISTON

22

SEAT

23

VALVE,PISTON

24

SPRING

25

VALVE,PISTON

26

707-40-22970

SPACER

27

707-37-22030

PISTON

28

07043-00108

PLUG

29

07000-15135

O-RING

30

707-35-91440

RING,BACK-UP

31

707-39-22820

RING,WEAR

32

707-44-22080

RING,PISTON

33

01252-31695

BOLT

34

21N-63-77170

TUBE

35

21N-63-77180

TUBE

36

01010-51240

BOLT

37

01643-31232

WASHER

38

707-88-95270

BAND

39

707-88-95310

BRACKET

40

07283-24346

CLIP

41

01643-31032

WASHER

42

01599-01011

NUT

43

07378-11410

HEAD

44

07000-13048

O-RING

45

01010-41455

BOLT

46

01643-31445

WASHER

47

07371-51470

FLANGE

48

01010-51450

BOLT

49

01643-31445

WASHER

50

07000-13048

O-RING
