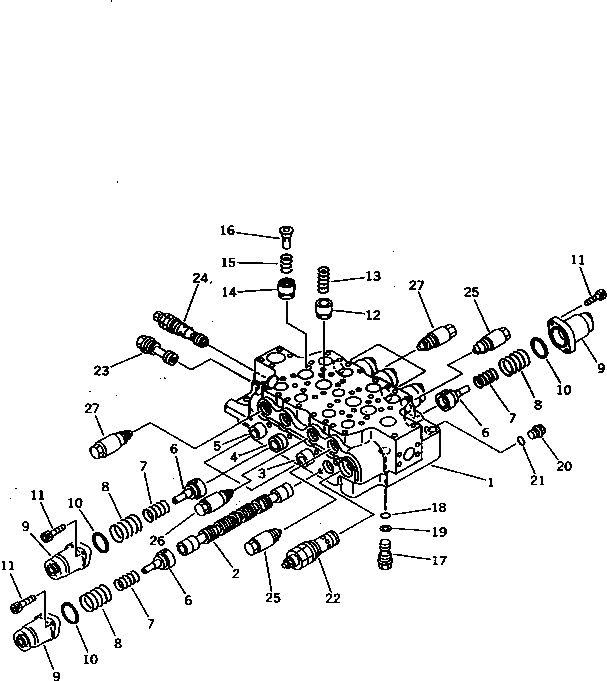

Запчасти Komatsu PC1000-1 ПРАВ. УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-14-91303

VALVE ASS'Y

|$1

709-14-91302

VALVE ASS'Y

|$2

709-14-91301

VALVE ASS'Y

1

BODY

1

BODY

2

SPOOL,R.H. TRAVEL

3

SPOOL,BOOM

4

SPOOL,BUCKET

5

SPOOL,ARM

6

709-14-11530

RETAINER

7

709-14-11560

SPRING,INNER

8

709-14-11550

SPRING,OUTER

9

709-14-11520

CASE

10

07000-02065

O-RING

11

01252-31035

BOLT

12

709-12-11411

VALVE,CHECK

13

709-12-11430

SPRING

14

709-14-11581

VALVE,CHECK

15

709-14-11590

SPRING

16

709-14-11610

SEAT

17

709-14-11510

PLUG

18

700-80-61260

O-RING

19

700-80-61430

RING,BACK-UP

20

700-22-11370

PLUG

21

07002-02434

O-RING

22

709-10-52601

VALVE ASS'Y,RELIEF

22

709-10-52600

VALVE ASS'Y,RELIEF

23

709-10-92100

ORIFICE ASS'Y

24

709-10-55403

VALVE ASS'Y,RELIEF

24

709-10-55402

VALVE ASS'Y,RELIEF

24

709-10-55401

VALVE ASS'Y,RELIEF

25

700-90-74001

VALVE ASS'Y,SUCTION

26

709-90-63101

VALVE ASS'Y,SUCTION AND SAFETY

26

709-90-63100

VALVE ASS'Y,SUCTION AND SAFETY

27

709-90-63201

VALVE ASS'Y,SUCTION AND SAFETY

27

709-90-63200

VALVE ASS'Y,SUCTION AND SAFETY
