Запчасти Komatsu PC1000-1 ГУСЕНИЦЫ (ДВОЙН. ГРУНТОЗАЦЕП)(№9-7) ХОДОВАЯ

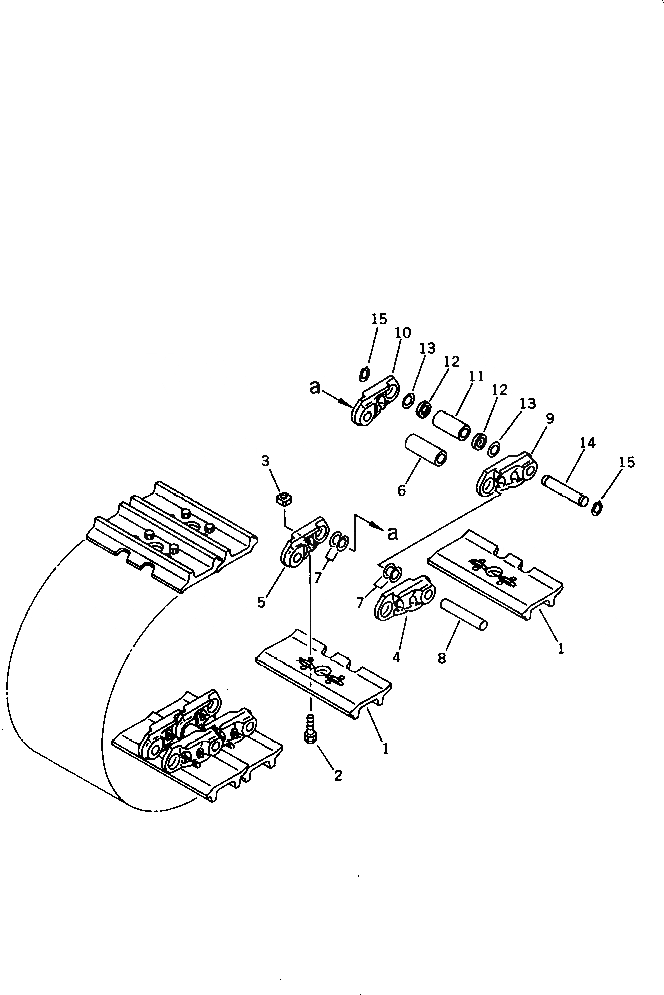

Схема запчастей Komatsu PC1000-1 - ГУСЕНИЦЫ (ДВОЙН. ГРУНТОЗАЦЕП)(№9-7) ХОДОВАЯ

Артикул

Название

Примечание

Количество

|$1

21N-32-01004

TRACK SHOE ASS'Y

|$2

21N-32-01003

TRACK SHOE ASS'Y

|$3

21N-32-01001

TRACK SHOE ASS'Y

1

21N-32-11111

SHOE,TRACK

2

21N-32-11211

BOLT (KIT)

3

195-32-41220

NUT, SHOE (KIT)

|$7

21N-32-00012

TRACK LINK ASS'Y

|$8

21N-32-00011

TRACK LINK ASS'Y

4

21N-32-11121

LINK,TRACK, L.H.

5

21N-32-11131

LINK,TRACK, R.H.

6

195-32-45140

BUSHING,REGULAR

7

195-32-45160

WASHER

8

21N-32-11151

PIN,REGULAR

8

195-32-45150

PIN,REGULAR

9

21N-32-11221

LINK,MASTER, L.H.

10

21N-32-11231

LINK,MASTER, R.H.

11

21N-32-11170

BUSHING,MASTER

12

21N-32-11251

SEAL,DUST

13

195-32-45160

WASHER

14

21N-32-11192

PIN,MASTER

14

21N-32-11191

PIN,MASTER

15

21N-32-11240

RING,SNAP

1

21N-32-01023

TRACK SHOE ASS'Y

1

21N-32-01022

TRACK SHOE ASS'Y

1

21N-32-01021

TRACK SHOE ASS'Y

1

21N-32-11311

SHOE,TRACK

2

21N-32-11211

BOLT (KIT)

3

195-32-41220

NUT, SHOE (KIT)

4

21N-32-00012

TRACK LINK ASS'Y

4

21N-32-00011

TRACK LINK ASS'Y

1

21N-32-01033

TRACK SHOE ASS'Y

1

21N-32-01032

TRACK SHOE ASS'Y

1

21N-32-01031

TRACK SHOE ASS'Y

1

21N-32-11411

SHOE,TRACK

2

21N-32-11211

BOLT (KIT)

3

195-32-41220

NUT, SHOE (KIT)

4

21N-32-00012

TRACK LINK ASS'Y

4

21N-32-00011

TRACK LINK ASS'Y

1

21N-32-05001

SHOE BOLT AND NUT K.

2

21N-32-11211

BOLT

3

195-32-41220

NUT, SHOE

6

195-98-09670

BUSHING,REGULAR

8

21N-98-09011

PIN,REGULAR

8

195-98-09650

PIN,REGULAR

11

21N-98-09130

BUSHING,MASTER

14

21N-98-09171

PIN,MASTER

14

21N-98-09170

PIN,MASTER

6

195-98-09680

BUSHING,REGULAR

8

21N-98-09021

PIN,REGULAR

8

195-98-09660

PIN,REGULAR

11

21N-98-09140

BUSHING,MASTER

14

21N-98-09181

PIN,MASTER

14

21N-98-09180

PIN,MASTER

Выбрано товаров: 53
