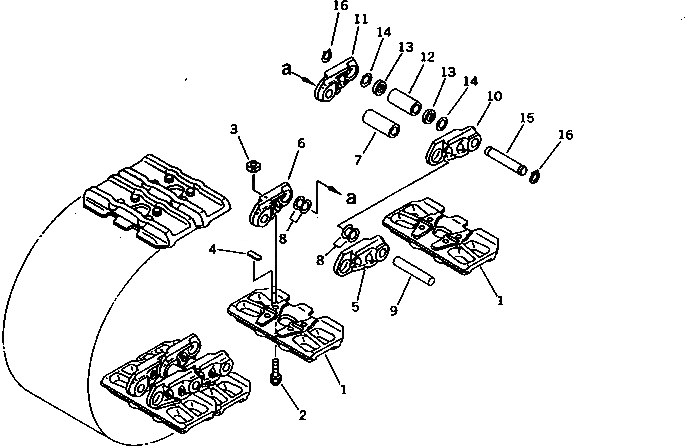

Запчасти Komatsu PC1000-1 ГУСЕНИЦЫ (ДВОЙН. ГРУНТОЗАЦЕП)(№-8) ХОДОВАЯ

|$1

21N-32-01001

TRACK SHOE ASS'Y

|$2

21N-32-01000

TRACK SHOE ASS'Y

1

21N-32-11110

SHOE,TRACK

2

21N-32-11210

BOLT, SHOE (KIT)

3

195-32-41220

NUT, SHOE (KIT)

4

04000-01880

KEY

|$7

21N-32-00010

TRACK LINK ASS'Y

5

21N-32-11120

LINK,TRACK, L.H.

6

21N-32-11130

LINK,TRACK, R.H.

7

195-32-45140

BUSHING,REGULAR

8

195-32-45160

WASHER

9

195-32-45150

PIN,REGULAR

10

21N-32-11220

LINK,MASTER, L.H.

11

21N-32-11230

LINK,MASTER, R.H.

12

21N-32-11170

BUSHING,MASTER

13

21N-32-11251

SEAL,DUST

14

195-32-45160

WASHER

15

21N-32-11191

PIN,MASTER

15

21N-32-11190

PIN,MASTER

16

21N-32-11240

RING,SNAP

1

21N-32-05000

SHOE BOLT AND NUT K.

1

21N-32-11210

BOLT, SHOE

2

195-32-41220

NUT, SHOE

1

21N-32-01021

TRACK SHOE ASS'Y

1

21N-32-01020

TRACK SHOE ASS'Y

1

21N-32-11310

SHOE,TRACK

2

21N-32-11320

BOLT, SHOE (KIT)

3

195-32-41220

NUT, SHOE (KIT)

4

04000-01880

KEY

5

21N-32-00010

TRACK LINK ASS'Y

1

21N-32-01031

TRACK SHOE ASS'Y

1

21N-32-01030

TRACK SHOE ASS'Y

1

21N-32-11410

SHOE,TRACK

2

21N-32-11320

BOLT, SHOE (KIT)

3

195-32-41220

NUT, SHOE (KIT)

4

04000-01880

KEY

5

21N-32-00010

TRACK LINK ASS'Y

1

21N-32-05010

SHOE BOLT AND NUT K.

1

21N-32-11320

BOLT, SHOE

2

195-32-41220

NUT, SHOE

7

195-98-09670

BUSHING,REGULAR

9

195-98-09650

PIN,REGULAR

12

21N-98-09130

BUSHING,MASTER

15

21N-98-09170

PIN,MASTER

7

195-98-09680

BUSHING,REGULAR

9

195-98-09660

PIN,REGULAR

12

21N-98-09140

BUSHING,MASTER

15

21N-98-09180

PIN,MASTER
