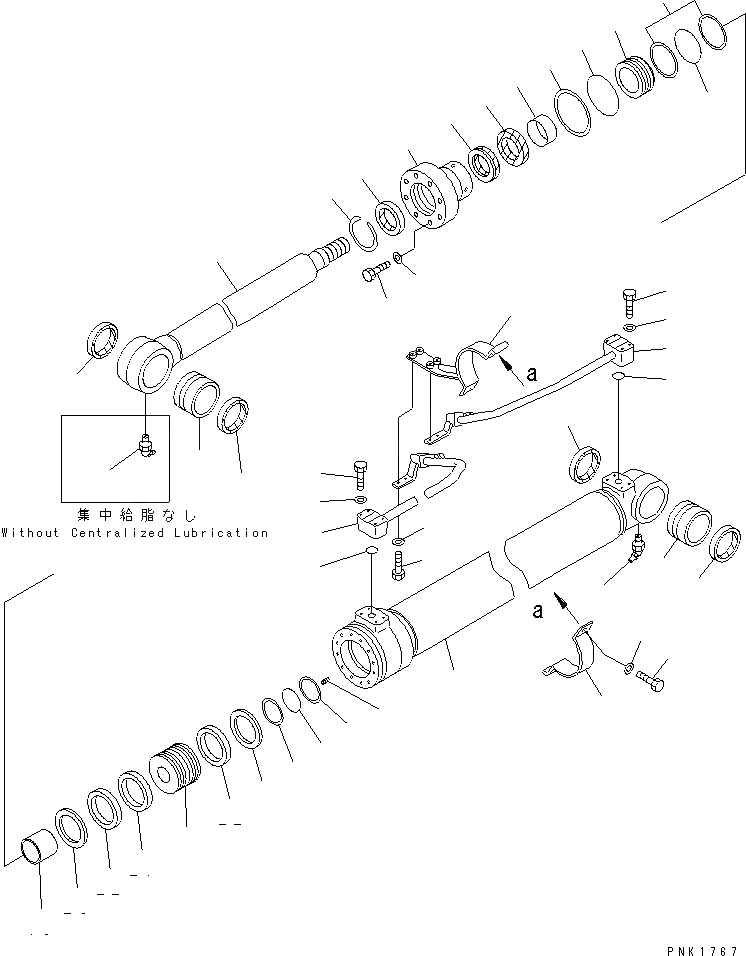

Запчасти Komatsu PC100-6S ЦИЛИНДР СТРЕЛЫ(SHOCK-LESS ТИП)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G1

202-63-X2900

CYLINDER GROUP,(L.H.)

G2

202-63-X2910

CYLINDER GROUP,(R.H.)

|1

202-63-02900

CYLINDER ASS'Y,BOOM

1

202-63-55340

CYLINDER

2

707-76-70230

BUSHING

3

07145-00070

SEAL,DUST (KIT)

4

07020-00675

FITTING,GREASE

5

707-27-95921

HEAD,CYLINDER

6

707-52-90420

BUSHING

7

707-51-65030

PACKING,ROD (KIT)

8

707-51-65630

RING,BUFFER (KIT)

9

707-71-32370

COLLAR

10

07000-15085

O-RING (KIT)

11

707-35-90970

RING,BACK-UP (KIT)

12

144-63-92170

SEAL,DUST (KIT)

13

07179-12079

RING,SNAP

14

01010-81465

BOLT

15

705-17-04980

WASHER

16

202-63-55320

ROD

17

707-76-70230

BUSHING

18

07145-00070

SEAL,DUST (KIT)

18A

07020-00675

FITTING,GREASE

19

707-71-70600

PLUNGER

20

707-36-95531

PISTON

21

707-44-95180

RING,PISTON (KIT)

22

707-39-95120

RING,WEAR (KIT)

23

707-44-95911

RING

24

01310-01016

SCREW,NYLON

25

707-34-55020

O-RING (KIT)

26

707-35-90610

RING (KIT)

27

202-63-55370

TUBE,L.H.

|27

202-63-55470

TUBE,R.H.

28

202-63-54380

TUBE,L.H.

|28

202-63-54480

TUBE,R.H.

29

07000-13025

O-RING (KIT)

30

01010-80850

BOLT

31

01643-50823

WASHER

32

707-88-96950

BAND

33

707-88-95480

BRACKET

34

01010-81035

BOLT

35

01643-51032

WASHER

36

01010-81030

BOLT

37

01643-31032

WASHER

|K

707-99-25840

SERVICE KIT,BOOM CYLINDER
