Запчасти Komatsu PC100-6 ОСНОВН. КЛАПАН (КЛАПАН¤ КОРПУС¤ КРЕПЛЕНИЕ И ДАТЧИК)(№-) ГИДРАВЛИКА

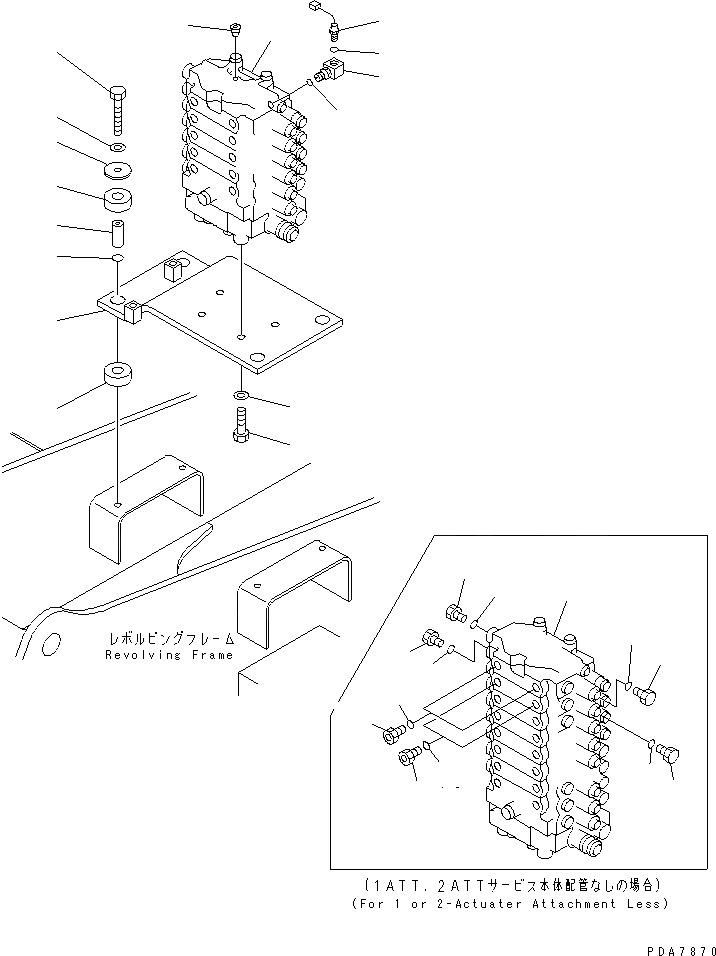

Схема запчастей Komatsu PC100-6 - ОСНОВН. КЛАПАН (КЛАПАН¤ КОРПУС¤ КРЕПЛЕНИЕ И ДАТЧИК)(№-) ГИДРАВЛИКА
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1A
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
17
18
18
19
20
21
21
22
22

Артикул

Название

Примечание

Количество

1

723-36-10300

CONTROL VALVE,(SEE FIG.Y1660-01A0B)

|1

723-36-10105

CONTROL VALVE,(SEE FIG.Y1660-01A0A)

|1

723-36-10104

CONTROL VALVE,(SEE FIG.Y1660-01A0)

|1

723-36-10102

CONTROL VALVE,(SEE FIG.Y1600-01A0)

|1

723-36-10101

CONTROL VALVE,(SEE FIG.Y1660-01A0)

1

723-36-12105

CONTROL VALVE,(SEE FIG.Y1660-41A0)

|1

723-36-12104

CONTROL VALVE,(SEE FIG.Y1660-41A0)

|1

723-36-12102

CONTROL VALVE,(SEE FIG.Y1660-41A0)

1

723-37-10300

CONTROL VALVE,(SEE FIG.Y1662-01A0B)

|1

723-37-10105

CONTROL VALVE,(SEE FIG.Y1662-01A0A)

|1

723-37-10104

CONTROL VALVE,(SEE FIG.Y1662-01A0)

|1

723-37-10102

CONTROL VALVE,(SEE FIG.Y1662-01A0)

|1

723-37-10101

CONTROL VALVE,(SEE FIG.Y1662-01A0)

1

723-37-12300

CONTROL VALVE,(SEE FIG.Y1662-41A0B)

|1

723-37-10204

CONTROL VALVE,(SEE FIG.Y1662-41A0A)

|1

723-37-10203

CONTROL VALVE,(SEE FIG.Y1662-41A0)

|1

723-37-10201

CONTROL VALVE,(SEE FIG.Y1662-41A0)

1

723-38-10300

CONTROL VALVE,(SEE FIG.Y1664-01A0B)

|1

723-38-10105

CONTROL VALVE,(SEE FIG.Y1664-01A0A)

|1

723-38-10104

CONTROL VALVE,(SEE FIG.Y1664-01A0)

|1

723-38-10102

CONTROL VALVE,(SEE FIG.Y1664-01A0)

|1

723-38-10101

CONTROL VALVE,(SEE FIG.Y1664-01A0)

1

723-38-12105

CONTROL VALVE,(SEE FIG.Y1664-41A0)

|1

723-38-12104

CONTROL VALVE,(SEE FIG.Y1664-41A0)

|1

723-38-12102

CONTROL VALVE,(SEE FIG.Y1664-41A0)

1

723-39-10300

CONTROL VALVE,(SEE FIG.Y1666-01A0B)

|1

723-39-10105

CONTROL VALVE,(SEE FIG.Y1666-01A0A)

|1

723-39-10104

CONTROL VALVE,(SEE FIG.Y1666-01A0)

|1

723-39-10102

CONTROL VALVE,(SEE FIG.Y1666-01A0)

|1

723-39-10101

CONTROL VALVE,(SEE FIG.Y1666-01A0)

1A

203-62-61172

BRACKET

|1A

203-62-61171

BRACKET

2

01010-51640

BOLT

|2

01010-51645

BOLT

3

01643-31645

WASHER

4

203-62-61571

PLATE

5

01011-51600

BOLT

6

01643-31645

WASHER

7

203-54-21110

CUSHION

8

203-62-61581

SPACER

|8

203-62-61580

SPACER

9

07000-03025

O-RING

10

07049-01215

PLUG

11

203-62-61511

ELBOW

12

07002-11823

O-RING

13

7861-92-1610

SENSOR,PRESSURE

|13

7861-92-1630

SENSOR,PRESSURE

14

07002-11823

O-RING

15

07040-12412

PLUG,(FOR 1-ACTUATER ATTACHMENT)

16

07002-12434

O-RING,(FOR 1-ACTUATER ATTACHMENT)

17

07040-11409

PLUG,(FOR 1-ACTUATER ATTACHMENT)

18

07002-01423

O-RING,(FOR 1-ACTUATER ATTACHMENT)

19

07040-12412

PLUG,(FOR 2-ACTUATER ATTACHMENT)

20

07002-12434

O-RING,(FOR 2-ACTUATER ATTACHMENT)

21

07040-11409

PLUG,(FOR 2-ACTUATER ATTACHMENT)

22

07002-01423

O-RING,(FOR 2-ACTUATER ATTACHMENT)

Выбрано товаров: 56
