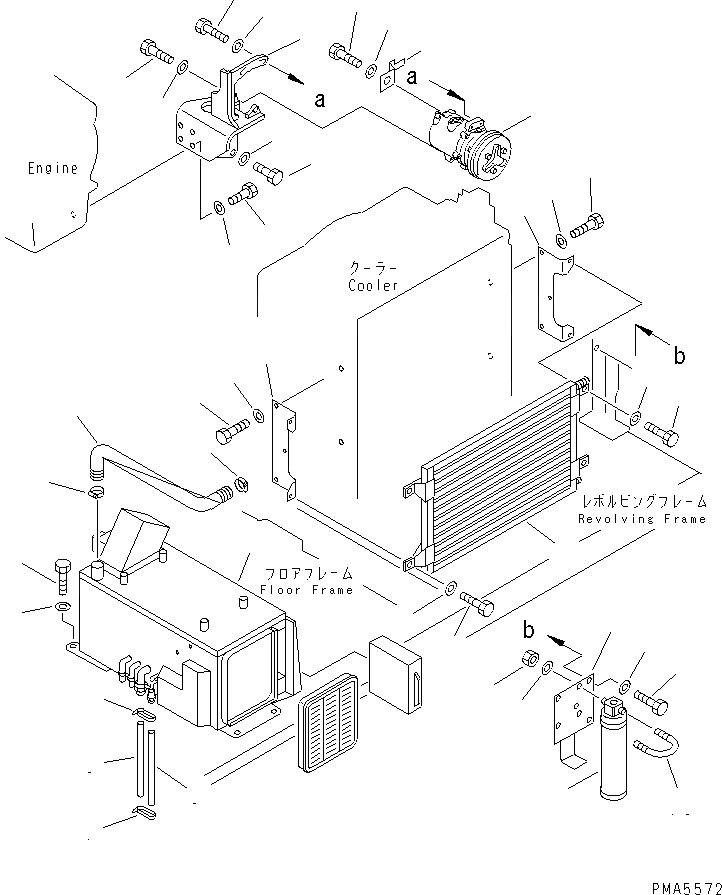

Запчасти Komatsu PC100-6 КОНДИЦ. ВОЗДУХА (БЛОК)(№-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

203-979-6511

AIR CONDITIONER UNIT,(SEE FIG.Y1979-01A0A)

1

203-979-6510

AIR CONDITIONER UNIT,(SEE FIG.Y1979-01A0)

2

203-979-6530

HOSE

3

203-979-6520

HOSE

4

01010-51030

BOLT

5

01643-31032

WASHER

6

07281-00419

CLAMP

7

08034-00519

BAND

|7

08034-00519

BAND

8

203-979-6380

CONDENSER ASS'Y

9

203-979-6610

RECEIVER DRYER

10

203-979-6320

BRACKET

11

01010-51020

BOLT

12

01643-31032

WASHER

13

01010-51025

BOLT

14

01643-31032

WASHER

15

203-979-6310

BRACKET

16

01010-51230

BOLT

17

01643-31232

WASHER

18

07283-27060

CLIP

19

01599-01011

NUT

20

01643-31032

WASHER

21

203-979-6580

COMPRESSOR ASS'Y

22

203-979-6290

BRACKET

23

01010-51075

BOLT

24

01643-31032

WASHER

25

01010-51025

BOLT

26

01643-31032

WASHER

27

01011-51015

BOLT

28

01643-31032

WASHER

29

01010-51030

BOLT

30

01643-31032

WASHER

31

08053-01512

CLIP

32

01010-51020

BOLT

33

01643-31032

WASHER
