Запчасти Komatsu PC100-6 МАРКИРОВКА (ИНДОНЕЗИЯ)(№-99) МАРКИРОВКА

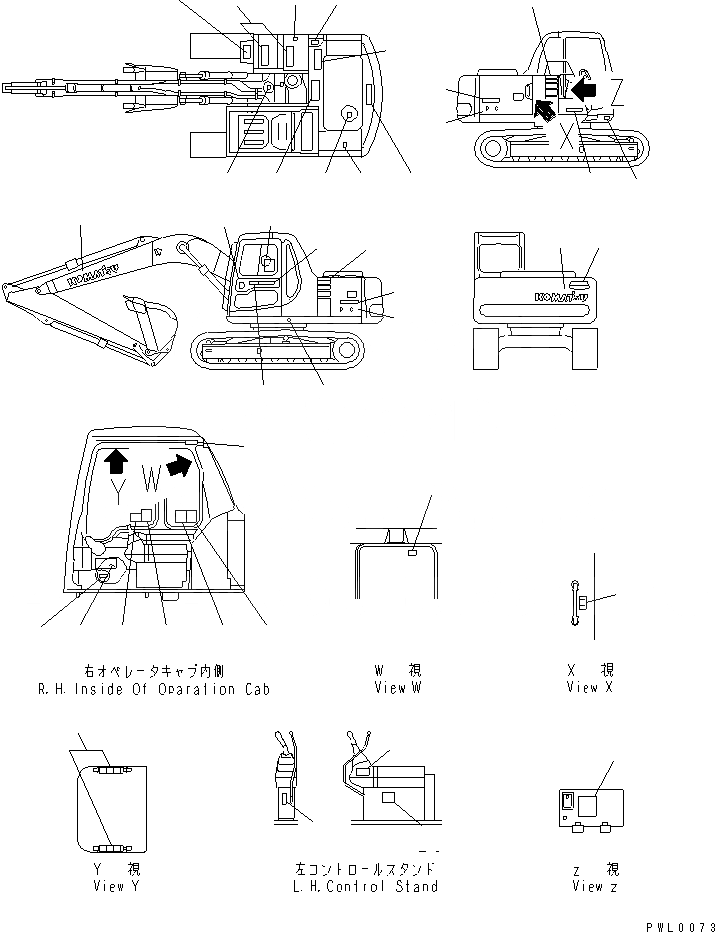

Схема запчастей Komatsu PC100-6 - МАРКИРОВКА (ИНДОНЕЗИЯ)(№-99) МАРКИРОВКА
1
2
3
4
5
5
6
6
7
7
8
9
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
31A
32
33

Артикул

Название

Примечание

Количество

1

09690-B0315

PLATE, MARK,KOMATSU

2

09690-B0500

PLATE, MARK,KOMATSU (SEE FIG.U0150-01A0)

3

09690-B0710

PLATE, MARK,KOMATSU (SEE FIG.U0150-01A0)

4

09690-M0063

PLATE, MARK,KOMATSU

5

20Y-00-21161

PLATE, AVANCE DECAL,AVANCE

6

202-00-71110

PLATE, MARK,PC100

7

20Y-00-22780

PLATE, MARK

8

203-54-63380

SEAT,NONSKID

9

203-00-51170

SEAT,NONSKID

10

154-54-23260

SEAT,NONSKID

11

09601-05835

PLATE, NAME,(LIMITED SUPPLY)

11

04418-13060

SCREW

12

202-00-71153

PLATE,OIL CHART,OIL CHART

13

20Y-00-21490

PLATE,KEEP OUT OF TURNING AREA

14

203-00-31120

PLATE, INSTRUCTION,HYDRAULIC OIL LEVEL

15

09653-00511

PLATE, SAFETY,HYDRAULIC OIL CAP

16

09668-00501

PLATE, SAFETY,RADIATOR CAP

17

09652-05121

PLATE, CAUTION,FUEL INLET

18

09960-61012

PLATE, MARK

19

20Y-00-22450

PLATE, MARK,HYDRAUMIND

20

20Y-00-21510

PLATE,SWING AND PUMP PROLIX

21

203-916-5730

PLATE, OPERATING,ISO PATTERN

22

09963-00500

TAG,DO NOT OPERATE

23

203-00-61340

PLATE,HANDLING

24

09654-00501

PLATE, SAFETY,LOCK LEVER

25

09803-00500

PLATE, SAFETY,AUTO LOCK

26

09802-00500

PLATE, SAFETY,BEFORE OPERATION

27

09801-00500

PLATE, SAFETY,HAZARDOUS VOLTAGE HAZARD

28

09657-00501

PLATE, SAFETY,TRACK ADJUSTING

29

09651-00501

PLATE, SAFETY,OPERATION AND MAINTENANCE

30

20Y-00-21520

PLATE,FUSE BOX

31

09685-00001

PLATE, OPERATING,LOCK LEVER

31A

205-00-63670

PLATE, CAUTION,GAS SPRING

32

20Y-54-36280

PLATE,DOOR DECAL

33

20Y-00-22980

PLATE, MARK,KOMATSU

Выбрано товаров: 35
