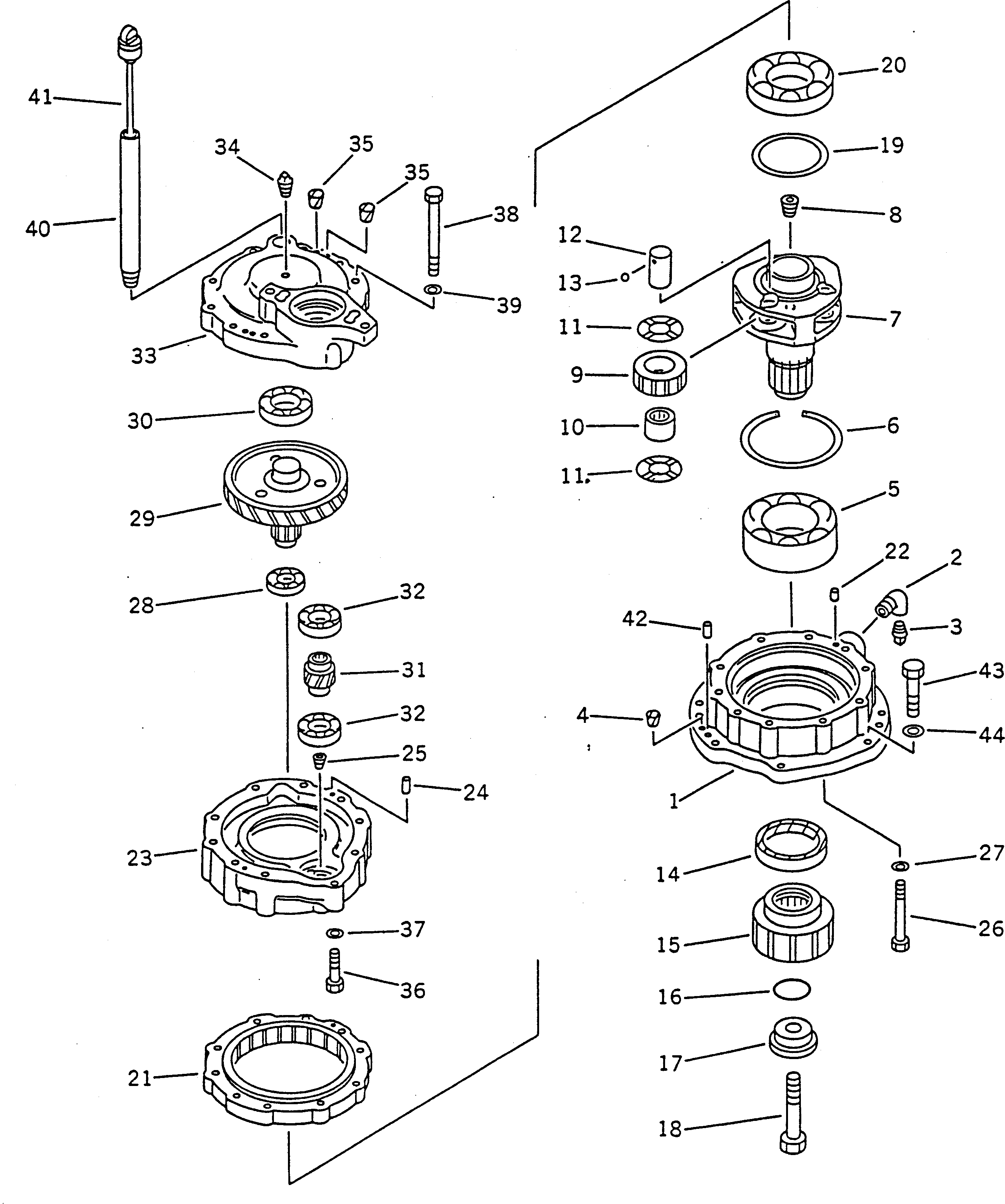

Запчасти Komatsu PC100-5Z МЕХАНИЗМ ПОВОРОТА ПОВОРОТН. СИСТЕМА

|1

203-26-00112

SWING MACHINERY A.

1

203-26-56130

CASE

2

07323-30600

ELBOW

3

07042-30617

PLUG

4

07049-01620

PLUG

5

06030-22316

BEARING

6

04071-00170

RING,SNAP

7

203-26-51142

CARRIER

8

07043-00415

PLUG

9

203-26-51521

GEAR

10

203-26-41240

BEARING

11

203-26-41250

WASHER,THRUST

12

203-26-51331

PIN

13

04260-00635

BALL

14

07012-00100

SEAL,OIL

15

203-26-41191

GEAR

16

07000-05065

O-RING

17

20G-26-11250

HOLDER

18

01011-52015

BOLT

19

203-26-41350

RING,SNAP

20

06033-00217

BEARING

21

203-26-56150

GEAR

22

04020-01228

PIN,DOWEL

23

203-26-56140

CASE

24

04020-01228

PIN,DOWEL

25

07043-00312

PLUG

26

01011-51430

BOLT

27

01643-31445

WASHER

28

06040-06007

BEARING

29

203-26-51553

GEAR

30

06030-06209

BEARING

31

203-26-56110

GEAR

32

06002-30207

BEARING

33

203-26-56121

COVER

34

07042-30108

PLUG

35

07049-01822

PLUG

36

01010-51265

BOLT

37

01643-31232

WASHER

38

01011-51465

BOLT

39

01643-31445

WASHER

40

203-26-56160

FILLER

41

20X-26-21322

GAUGE

42

04020-01638

PIN,DOWEL

43

01010-51655

BOLT

44

01643-31645

WASHER
