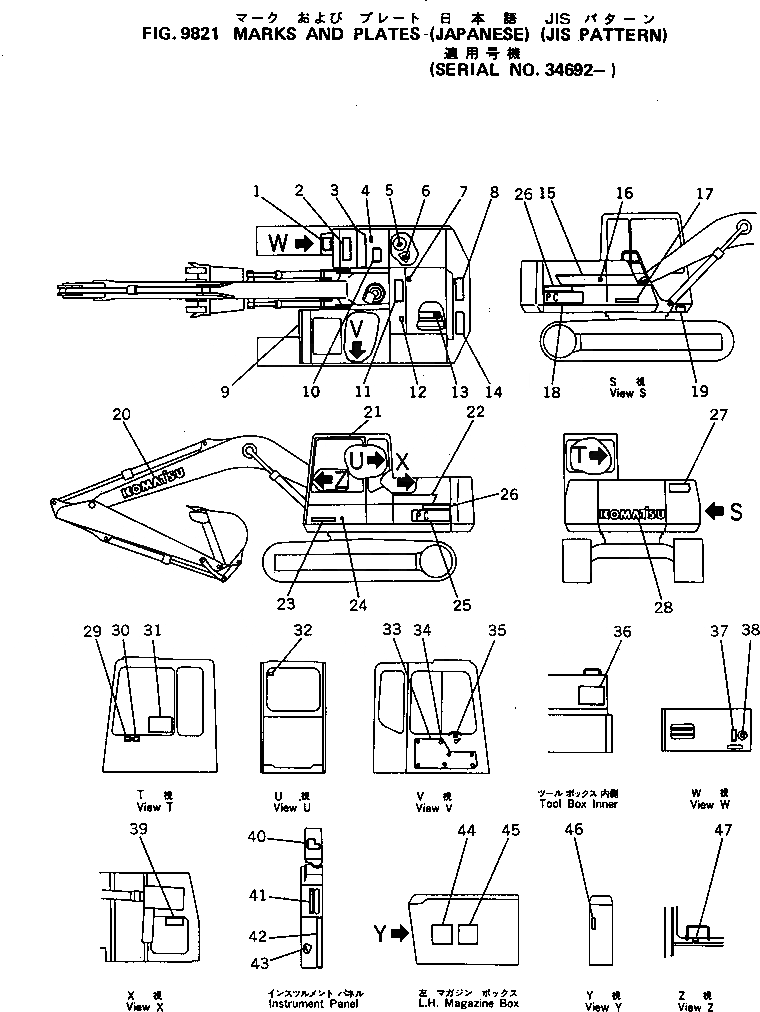

Запчасти Komatsu PC100-5Z МАРКИРОВКА (JIS PATTERN №9-) (ЯПОН.)(№9-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

203-00-51170

SEAT,NONSKID

2

154-54-23260

SEAT,NONSKID

3

203-00-51280

PLATE¤ MARK,LINE

4

09652-90131

PLATE¤ CAUTION,FUEL

5

09669-00003

PLATE¤ CAUTION,HYDRAULIC TANK CAP

6

09653-09000

PLATE¤ SAFETY,HYDRAULIC TANK CAP

7

09667-09000

PLATE¤ SAFETY,ENGINE COVER

8

154-54-23260

SEAT,NONSKID

9

20Y-00-11490

PLATE

10

203-00-51170

SEAT,NONSKID

11

154-54-23260

SEAT,NONSKID

12

09650-90104

PLATE¤ INSTRUCTION,RADIATOR

13

09668-09000

PLATE¤ SAFETY,RADIATOR CAP

14

154-54-23260

SEAT,NONSKID

15

203-00-51270

PLATE¤ MARK,LINE

16

203-00-31120

PLATE¤ INSTRUCTION,HYDRAULIC OIL LEVEL

17

09690-C0315

PLATE¤ MARK,KOMATSU

18

202-00-61112

PLATE¤ MARK,PC100

19

09602-91635

PLATE¤ NAME,(LIMITED SUPPLY)

|19

04418-13060

SCREW

20

09690-B0500

PLATE¤ MARK,KOMATSU

21

20Y-00-11350

PLATE

22

203-00-51260

PLATE¤ MARK,LINE

23

09690-C0315

PLATE¤ MARK,KOMATSU

24

20Y-00-11350

PLATE

25

202-00-61112

PLATE¤ MARK,PC100

26

20Y-00-11520

PLATE¤ MARK,AVANCE

27

208-00-51560

PLATE¤ CAUTION,KEEP OUT OF TURNING AREA

28

09690-C0710

PLATE¤ MARK,KOMATSU

29

09699-00100

PLATE¤ CAUTION,WINDOW WASHER

30

203-916-5130

PLATE¤ OPERATING,ISO PATTERN

31

20Y-00-12870

PLATE¤ CAUTION

32

20D-00-12530

PLATE,AUTO LOCK

33

20Y-54-14670

COVER

34

20Y-54-14560

CLIP ASS'Y

35

205-00-71340

PLATE¤ OPERATING,DOOR LOCK

36

203-00-56810

CHART¤ OIL

37

201-00-61340

PLATE¤ OPERATING,LOCK

38

201-00-61380

PLATE¤ OPERATING,LOCK

39

09637-90761

PLATE¤ INSTRUCTION,AIR CLEANER

40

208-00-51690

PLATE

41

201-00-61230

PLATE¤ OPERATING,FUEL CONTROL LEVER

42

203-00-52220

PLATE

43

20Y-00-12850

PLATE,PANEL

44

202-00-61351

PLATE¤ DATA

45

203-916-5720

PLATE¤ OPERATING,MULTI PATTERN

46

09685-00002

PLATE¤ OPERATING,LOCK LEVER

47

208-00-51650

PLATE¤ CAUTION,FRONT WINDOW
