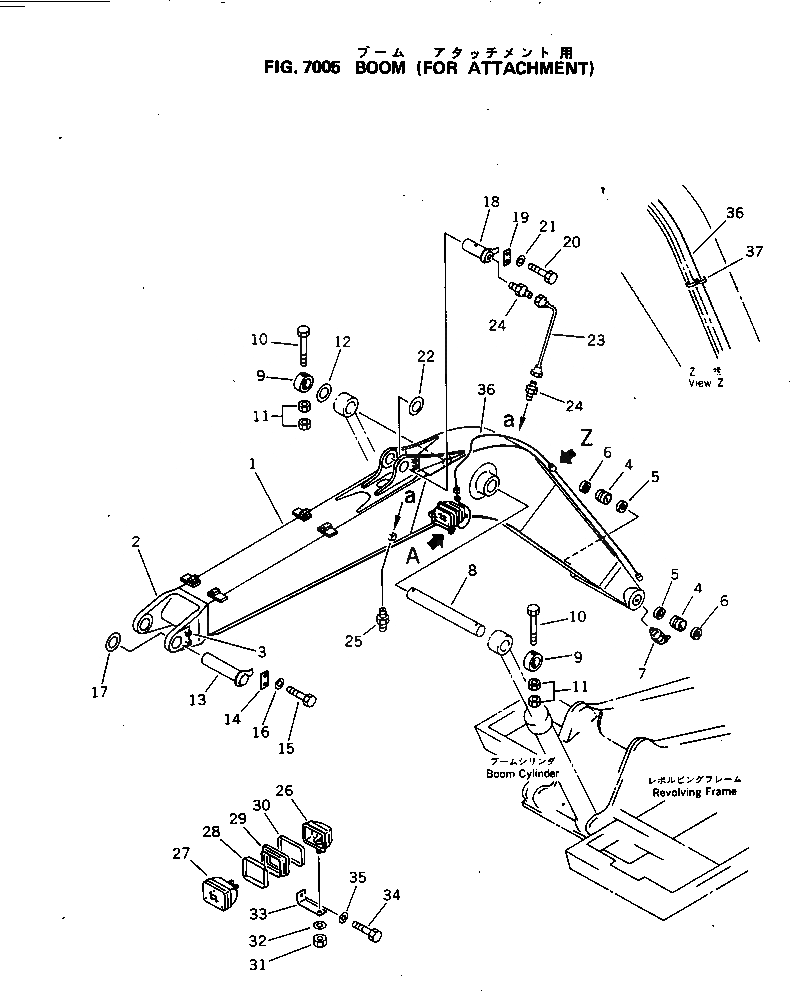

Запчасти Komatsu PC100-5Z СТРЕЛА (ДЛЯ НАВЕСН. ОБОРУД.) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

202-973-0012

BOOM ASS'Y

|1

202-973-0030

BOOM ASS'Y,(WITH LUB. PIPING)

1

BOOM

|1

BOOM,(WITH LUB. PIPING)

2

202-70-61322

BRACKET (WELDED)

3

203-46-41130

SEAT (WELDED)

4

203-70-56121

BUSHING

5

07145-00070

SEAL,DUST

6

07145-00070

SEAL,DUST

7

07020-00675

FITTING,GREASE

8

202-70-61180

PIN

9

21K-70-11410

PLATE

10

01019-11640

BOLT

11

01580-11613

NUT

12

203-70-41460

SPACER¤ 1.0MM

13

202-70-61210

PIN

14

203-46-56270

PLATE

15

01010-51230

BOLT

16

01643-31232

WASHER

17

203-70-34270

SPACER¤ 0.5MM

|17

203-70-11210

SPACER¤ 1.0MM

18

202-70-61190

PIN

19

203-46-56270

PLATE

20

01010-51230

BOLT

21

01643-31232

WASHER

22

203-70-41460

SPACER¤ 1.0MM

23

202-70-11410

TUBE

24

07214-00610

CONNECTOR

25

07020-00000

FITTING,GREASE

|26

203-06-56140

LAMP ASS'Y,WORK

|26

HOUSING

27

22W-06-12170

BULB¤ 24V

28

203-06-56180

RING

29

22W-06-12290

CUSHION

30

203-06-56190

RING

31

01582-11411

NUT

32

01643-31445

WASHER

33

203-06-56410

BRACKET

34

01010-51430

BOLT

35

01643-31445

WASHER

36

203-06-57230

WIRE

37

203-06-56570

BAND
