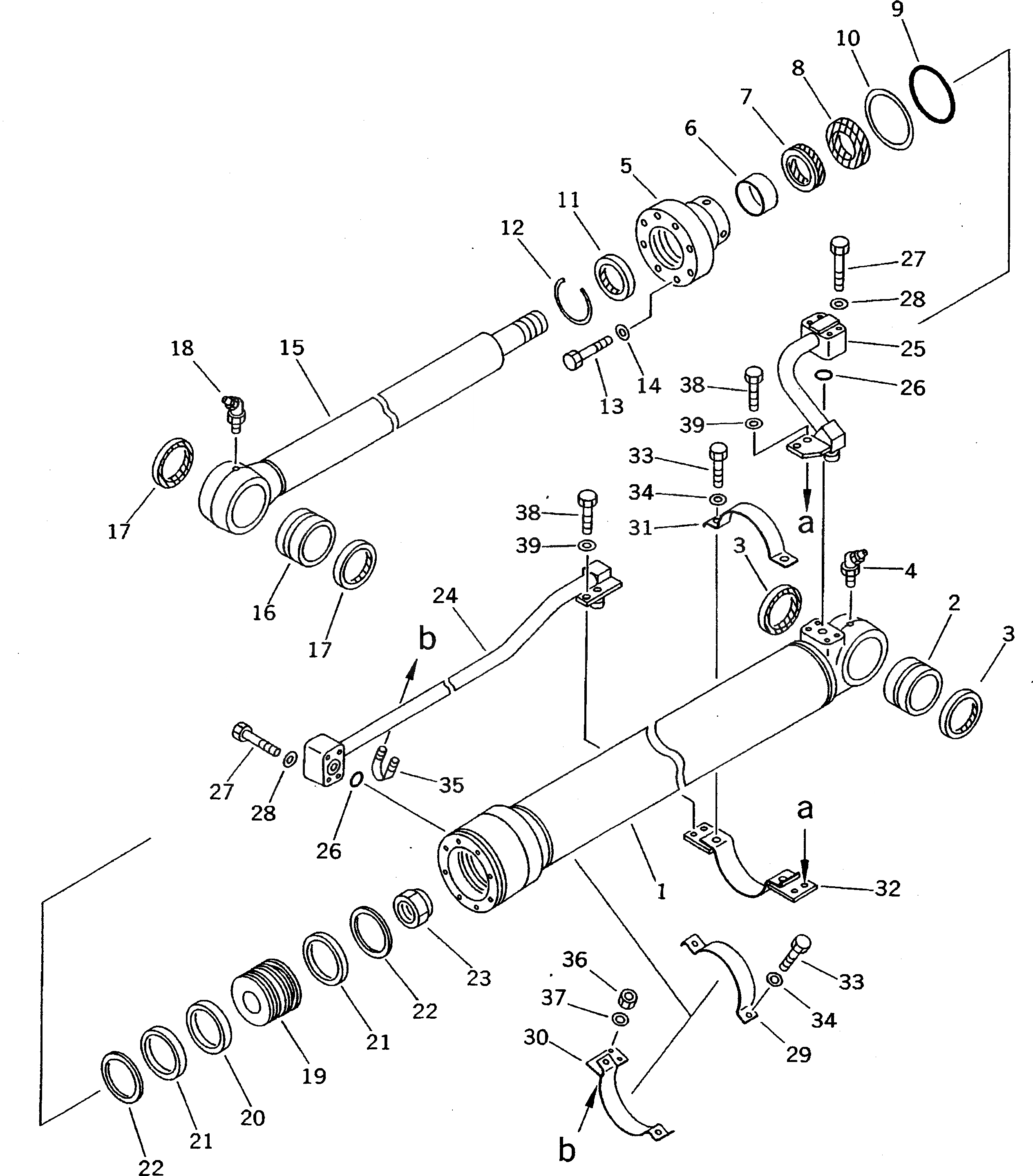

Запчасти Komatsu PC100-5S ЦИЛИНДР КОВША РАБОЧЕЕ ОБОРУДОВАНИЕ
№
Артикул
Название
Примечание
Количество
|1
202-63-02130
CYLINDER ASS'Y,BUCKET
1
202-63-74340
CYLINDER
2
707-76-65210
BUSHING
3
07145-00065
SEAL,DUST (KIT)
4
07020-00675
FITTING,GREASE
5
707-27-90620
HEAD,CYLINDER
6
707-52-90350
BUSHING
7
707-51-60030
PACKING,ROD (KIT)
8
707-51-60630
RING,BUFFER (KIT)
9
07000-15085
O-RING (KIT)
10
707-35-90960
RING,BACK-UP (KIT)
11
141-63-93270
SEAL,DUST (KIT)
12
07179-12074
RING,SNAP
13
01010-81465
BOLT
14
705-17-04980
WASHER
15
202-63-74320
ROD
16
707-76-65220
BUSHING
17
707-77-65110
SEAL,DUST (KIT)
18
07020-00675
FITTING,GREASE
19
707-36-90300
PISTON
20
707-44-90180
RING,PISTON (KIT)
21
707-39-90110
RING,WEAR (KIT)
22
707-44-90911
RING
23
07165-14244
NUT,NYLON
24
202-63-74371
TUBE
25
202-63-74381
TUBE
26
07000-13025
O-RING (KIT)
27
01010-50850
BOLT
28
01643-50823
WASHER
29
707-88-96280
BAND
30
707-88-95521
BRACKET
31
707-88-96280
BAND
32
202-63-74390
BRACKET
33
01010-51035
BOLT
34
01643-51032
WASHER
35
07283-22236
CLIP
36
01599-01011
NUT
37
01643-31032
WASHER
38
01010-51025
BOLT
39
01643-31032
WASHER
K
707-98-27600
SERVICE KIT
|40
07145-00065
SEAL,DUST
|40
707-51-60030
PACKING,ROD
|40
707-51-60630
RING,BUFFER
|40
07000-15085
O-RING
|40
707-35-90960
RING,BACK-UP
|40
141-63-93270
SEAL,DUST
|40
707-77-65110
SEAL,DUST
|40
707-44-90180
RING,PISTON
|40
707-39-90110
RING,WEAR
|40
07000-13025
O-RING
Выбрано товаров: 51
