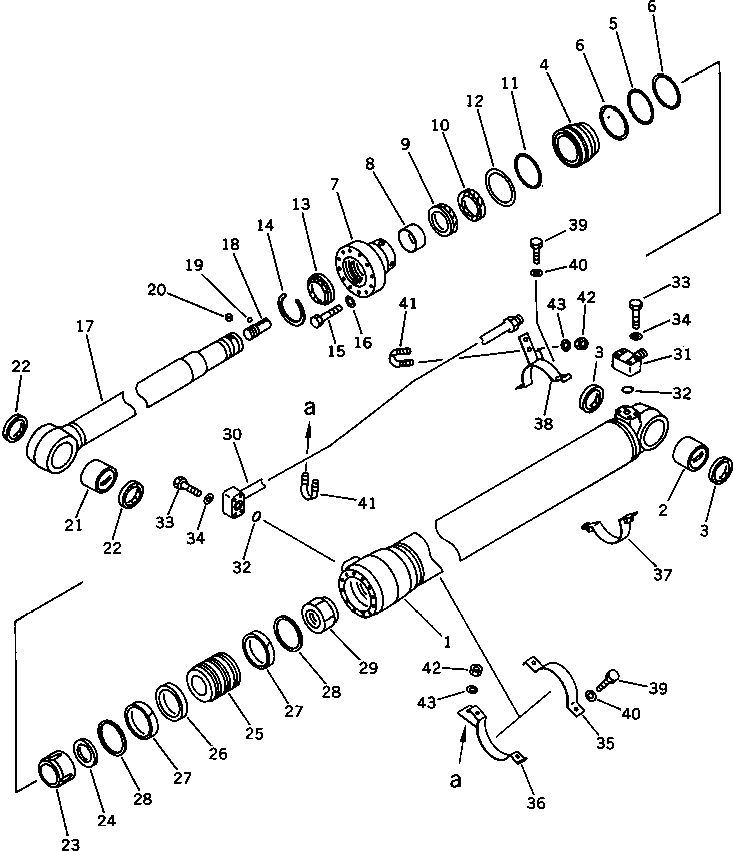

Запчасти Komatsu PC100-5S ЦИЛИНДР РУКОЯТИ РАБОЧЕЕ ОБОРУДОВАНИЕ
№
Артикул
Название
Примечание
Количество
|1
202-63-02120
CYLINDER ASS'Y,ARM
1
202-63-64340
CYLINDER
2
707-76-70240
BUSHING
3
07145-00070
SEAL,DUST (KIT)
4
707-71-32500
COLLAR
5
07000-15110
O-RING (KIT)
6
07001-05110
RING,BACK-UP (KIT)
7
707-27-11670
HEAD,CYLINDER
8
707-52-90500
BUSHING
9
707-51-75030
PACKING,ROD (KIT)
10
707-51-75630
RING,BUFFER (KIT)
11
07000-15110
O-RING (KIT)
12
07001-05110
RING,BACK-UP (KIT)
13
144-63-94170
SEAL,DUST (KIT)
14
07179-13089
RING,SNAP
15
01010-81670
BOLT
16
01643-51645
WASHER
17
202-63-64320
ROD
18
707-71-60200
PLUNGER
19
04260-00635
BALL
20
707-71-91270
CAP
21
707-76-70240
BUSHING
22
07145-00070
SEAL,DUST (KIT)
23
707-71-60801
PLUNGER
24
707-40-11470
RETAINER
25
707-36-11510
PISTON
26
707-44-11280
RING,PISTON (KIT)
27
707-39-11510
RING,WEAR (KIT)
28
707-44-11920
RING
29
07165-15860
NUT,NYLON
30
202-63-64370
TUBE
31
707-87-11450
ELBOW
32
07000-13025
O-RING (KIT)
33
01010-50850
BOLT
34
01643-50823
WASHER
35
707-88-95350
BAND
36
707-88-95501
BRACKET
37
707-88-95360
BAND
38
707-88-95510
BRACKET
39
01010-51035
BOLT
40
01643-51032
WASHER
41
07283-22236
CLIP
42
01599-01011
NUT
43
01643-31032
WASHER
K
707-99-44200
SERVICE KIT
|44
07145-00070
SEAL,DUST
|44
07000-15110
O-RING
|44
07001-05110
RING,BACK-UP
|44
707-51-75030
PACKING,ROD
|44
707-51-75630
RING,BUFFER
|44
07000-15110
O-RING
|44
07001-05110
RING,BACK-UP
|44
144-63-94170
SEAL,DUST
|44
07145-00070
SEAL,DUST
|44
707-44-11280
RING,PISTON
|44
707-39-11510
RING,WEAR
|44
07000-13025
O-RING
Выбрано товаров: 57
