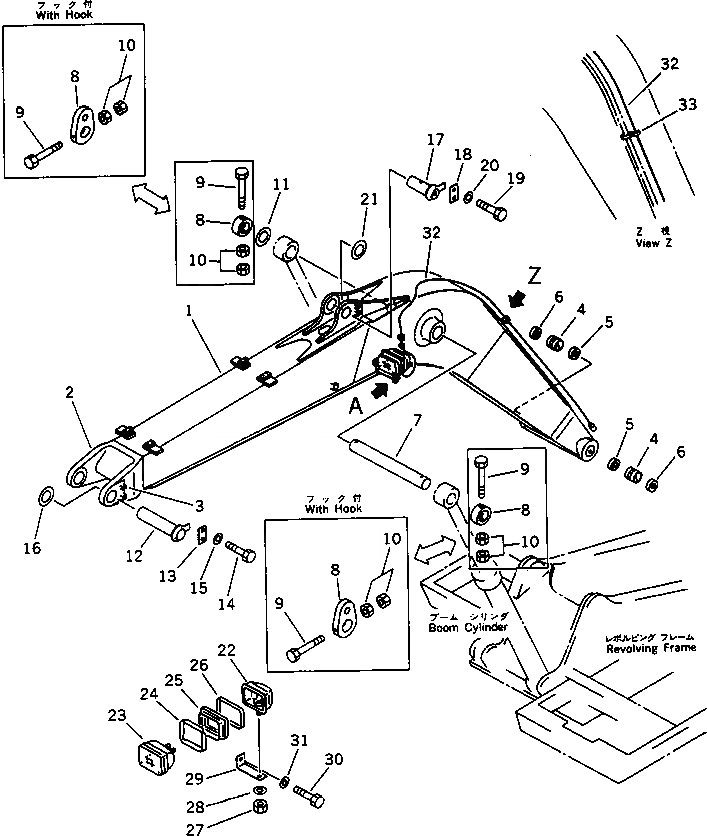

Запчасти Komatsu PC100-5C СТРЕЛА РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)

|$0

202-70-00512

BOOM ASS'Y

1

BOOM

2

202-70-61322

BRACKET (WELDED)

3

203-46-41130

SEAT (WELDED)

4

203-70-56121

BUSHING

5

07145-00070

SEAL,DUST

6

07145-00070

SEAL,DUST

7

07020-00675

FITTING,GREASE

8

202-70-61180

PIN

9

21K-70-11410

PLATE

10

01019-11640

BOLT

11

01580-11613

NUT

12

203-70-41460

SPACER, 1.0MM

13

202-70-61210

PIN

14

203-46-56270

PLATE

15

01010-51230

BOLT

16

01643-31232

WASHER

17

203-70-34270

SPACER, 0.5MM

17

203-70-11210

SPACER, 1.0MM

18

202-70-61190

PIN

19

203-46-56270

PLATE

20

01010-51230

BOLT

21

01643-31232

WASHER

22

203-70-41460

SPACER, 1.0MM

23

202-70-11410

TUBE

24

07214-60610

CONNECTOR

25

07020-00000

FITTING,GREASE

|$27

203-06-56140

LAMP ASS'Y,WORK

26

HOUSING

27

22W-06-12170

BULB, 24V

28

203-06-56180

RING

29

22W-06-12290

CUSHION

30

203-06-56190

RING

31

01582-11411

NUT

32

01643-31445

WASHER

33

203-06-56410

BRACKET

34

01010-51430

BOLT

35

01643-31445

WASHER

36

203-06-57230

WIRE

37

203-06-56570

BAND
