Запчасти Komatsu PC100-5C МОТОР ХОДА (/) (№8-)(№8-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

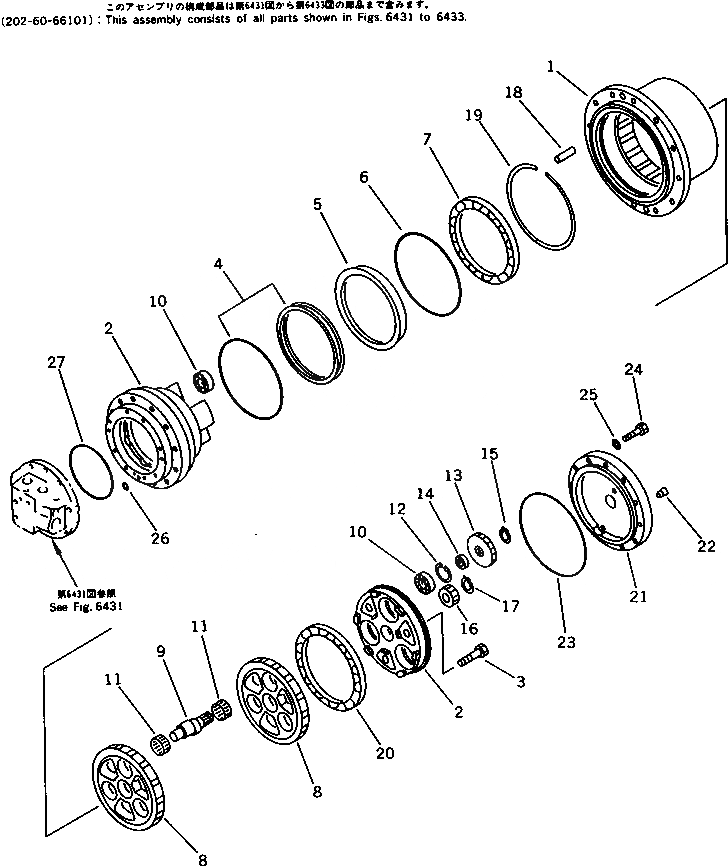

Схема запчастей Komatsu PC100-5C - МОТОР ХОДА (/) (№8-)(№8-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|$0

202-60-66101

TRAVEL MOTOR ASS'Y

1

TZ200B1001-00

HUB

|$2

TZ200B1102-03

SPINDLE KIT

2

TZ200B1132-03

SPINDLE ASS'Y

3

TZ200B1019-02

BOLT,REAMER

|$5

TZ250-280-35

FLOATING SEAL ASS'Y

4

TZES100-250-A

SEAL,FLOATING (K1)

5

TZ150F1027-01

PIECE,DISTANCE

6

07000-15280

O-RING (K1)

7

TZ200B1021-00

BEARING

|$10

TZ200B1104-02

RV GEAR ASS'Y

8

TZ200B1204-01

RV GEAR KIT

9

TZ200B1009-01

SHAFT,CRANK

10

TZ200B1022-00

BEARING

11

TZ200B1023-00

BEARING

12

TZ150A1020-00

SNAP RING KIT,(12 KINDS)

13

TZ205B1107-00

SPUR GEAR KIT,(3 PIECES)

14

TZ200B1014-01

PIECE,DISTANCE

15

04064-03515

RING,SNAP

16

TZ205B1006-00

GEAR,INPUT

17

04064-02815

RING,SNAP

18

TZ200B1017-00

PIN

19

TZ700C1016-00

RING

20

TZ200B1021-00

BEARING

21

TZ200B1008-00

COVER

22

TZGM1-2

PLUG

23

TZARP568-378-9

O-RING (K1)

24

01010-31245

BOLT

25

TZSW-M12

WASHER

26

07000-11008

O-RING (K1)

27

TZJW1516-G41-9

O-RING (K1)

K1

TZ205B9000-00

SERVICE KIT

1

07000-15145

O-RING

1

TZ231F2030-00

RING,BACK-UP

1

07000-15170

O-RING

1

TZSUN-2BG170

RING,BACK-UP

1

TZTCH-32-52-11

SEAL,OIL

1

07000-11009

O-RING

1

07000-13032

O-RING

1

07000-11006

O-RING

1

07000-12020

O-RING

1

07000-13032

O-RING

1

07000-12020

O-RING

1

07002-02034

O-RING

1

TZES100-250-A

SEAL,FLOATING

1

07000-15280

O-RING

1

TZARP568-378-9

O-RING

1

07000-11008

O-RING

1

TZJW1516-G41-9

O-RING

Выбрано товаров: 49
