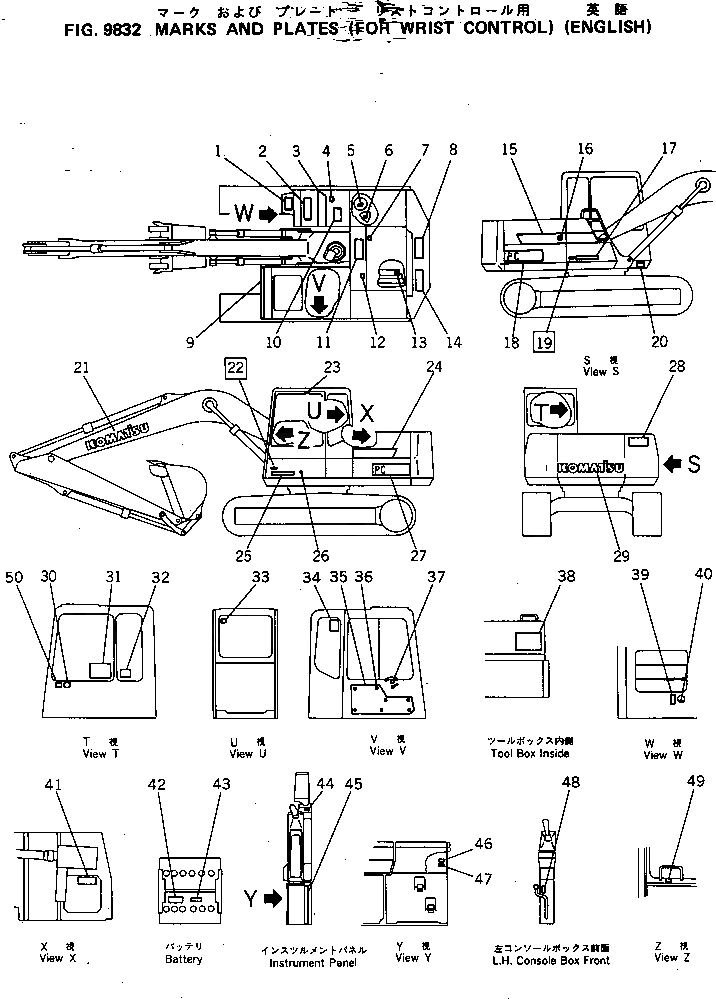

Запчасти Komatsu PC100-5 МАРКИРОВКА (ДЛЯ WRIST РЫЧАГ УПРАВЛ-Я) (АНГЛ.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

203-00-51170

SEAT,NONSKID

2

154-54-23260

SEAT,NONSKID

3

203-00-51280

PLATE, MARK,LINE

4

09652-30121

PLATE, CAUTION,FUEL

5

20X-98-19130

PLATE, CAUTION,HYDRAULIC TANK CAP

6

09653-03000

PLATE, SAFETY,HYDRAULIC TANK CAP

7

09667-03000

PLATE, SAFETY,ENGINE COVER

8

154-54-23260

SEAT,NONSKID

9

20Y-00-11490

PLATE

9

20Y-00-11810

PLATE,(FOR USA, CANADA)

10

203-00-51170

SEAT,NONSKID

11

154-54-23260

SEAT,NONSKID

12

09650-30104

PLATE, INSTRUCTION,RADIATOR

13

09668-03000

PLATE, SAFETY,RADIATOR CAP

14

154-54-23260

SEAT,NONSKID

15

203-00-51270

PLATE, MARK,LINE

16

203-00-31120

PLATE, INSTRUCTION,HYDRAULIC OIL LEVEL

17

09690-C0315

PLATE, MARK,KOMATSU

17

09690-50400

PLATE, MARK,KOMATSU

18

202-00-61112

PLATE, MARK,PC100

18

202-00-61111

PLATE, MARK,PC100

19

09694-50125

PLATE, MARK,SYMBOL

20

09602-01635

PLATE, NAME,(LIMITED SUPPLY)

20

04418-13060

SCREW

21

09690-B0500

PLATE, MARK,KOMATSU

21

203-00-51131

PLATE, MARK,KOMATSU

22

09694-50125

PLATE, MARK,SYMBOL

23

20Y-00-11350

PLATE

24

203-00-51260

PLATE, MARK,LINE

25

09690-C0315

PLATE, MARK,KOMATSU

25

09690-50400

PLATE, MARK,KOMATSU

26

20Y-00-11350

PLATE

27

202-00-61112

PLATE, MARK,PC100

27

202-00-61111

PLATE, MARK,PC100

28

20Y-00-11430

PLATE, CAUTION,KEEP OUT OF TURNING AREA

29

09690-C0710

PLATE, MARK,KOMATSU

29

203-00-41131

PLATE, MARK,KOMATSU

30

203-916-5730

PLATE, OPERATING,ISO PATTERN

31

203-00-56220

PLATE, CAUTION,CONTROL PANEL

32

205-00-65490

PLATE, CAUTION,MAX. HIGHT AND REACH (FOR USA)

33

205-00-63350

PLATE, CAUTION,AUTO LOCK

34

203-00-56240

PLATE, INSTRUCTION,LIFTING CAPACITY (STD ARM)

34

203-00-56250

PLATE, INSTRUCTION,LIFTING CAPACITY (LONG ARM)

34

203-00-56260

PLATE, INSTRUCTION,LIFTING CAPACITY (SHORT ARM)

35

20Y-54-14670

COVER

36

20Y-54-14560

CLIP ASS'Y

37

205-00-71340

PLATE, OPERATING,DOOR LOCK

38

203-00-56210

CHART, OIL

39

201-00-61340

PLATE, OPERATING,LOCK

39

09685-00004

PLATE, OPERATING,LOCK

39

09685-00003

PLATE, OPERATING,LOCK

40

201-00-61380

PLATE, OPERATING,LOCK

40

203-00-52290

PLATE, OPERATING,LOCK

41

09637-30661

PLATE, INSTRUCTION,AIR CLEANER (SINGLE ELEMENT)

41

09637-30161

PLATE, INSTRUCTION,AIR CLEANER (DOUBLE ELEMENT)

42

09664-30081

PLATE, SAFETY,BATTERY (FOR USA)

43

09664-30068

PLATE, SAFETY,BATTERY (FOR USA)

44

203-00-52260

PLATE, OPERATING,WINDOW WASHER

45

203-00-52220

PLATE

46

203-00-56280

PLATE, OPERATING,T.V.C. PROLIX

47

203-00-56290

PLATE, OPERATING,SWING PROLIX

48

09685-00002

PLATE, OPERATING,LOCK LEVER

49

203-00-56230

PLATE, CAUTION,FRONT WINDOW

50

09699-13000

PLATE, CAUTION,WINDOW WASHER
