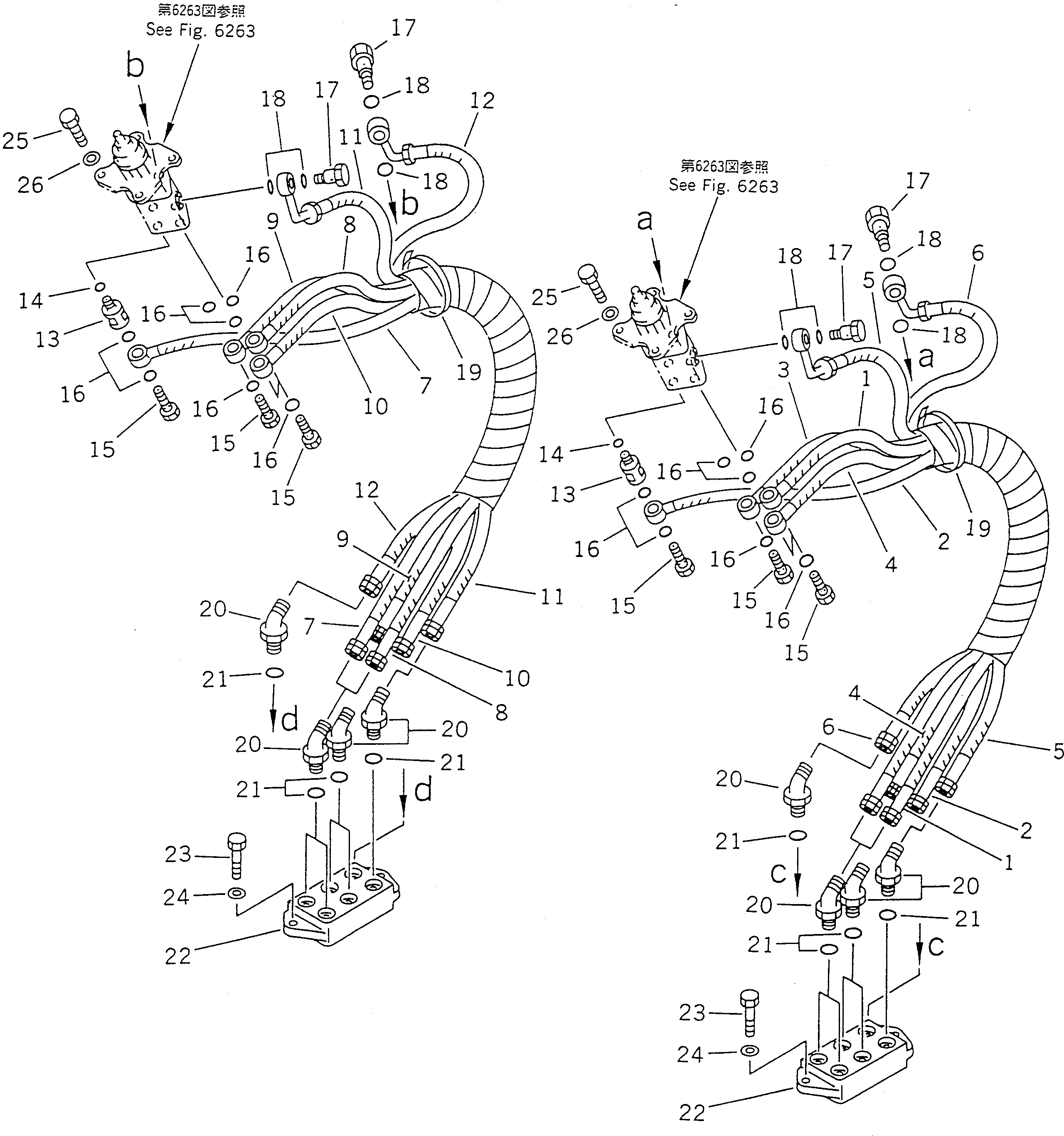

Запчасти Komatsu PC100-5 ГИДРОЛИНИЯ (P.P.C. КЛАПАН TO/ FROM БЛОК) (ДЛЯ WRIST РЫЧАГ УПРАВЛ-Я)(№8-) СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

1

20Y-62-16161

HOSE¤ 725MM,(YELLOW)

2

20Y-62-16151

HOSE¤ 750MM,(WHITE)

3

20Y-62-16151

HOSE¤ 750MM,(BROWN)

4

20Y-62-16161

HOSE¤ 725MM,(BLACK)

5

20Y-62-16131

HOSE¤ 670MM,(RED)

6

20Y-62-16121

HOSE,(BLUE)

7

20Y-62-16151

HOSE¤ 750MM,(WHITE)

8

20Y-62-16161

HOSE¤ 725MM,(YELLOW)

9

20Y-62-16151

HOSE¤ 750MM,(BLACK)

10

20Y-62-16161

HOSE¤ 725MM,(BROWN)

11

20Y-62-16131

HOSE¤ 670MM,(RED)

12

20Y-62-16121

HOSE,(BLUE)

13

20Y-62-16180

NIPPLE

14

07000-02015

O-RING

15

20Y-62-16170

BOLT,EYE

16

07000-02015

O-RING

17

203-62-57730

BOLT,JOINT

18

07000-02018

O-RING

19

08034-00823

BAND

20

07236-10315

ELBOW

21

07002-02034

O-RING

22

20Y-62-16221

BLOCK

23

01010-51035

BOLT

24

01643-51032

WASHER

25

01010-50825

BOLT

26

01643-30823

WASHER
