Запчасти Komatsu PC100-5 ПРАВ. COVER(№8-) ЧАСТИ КОРПУСА

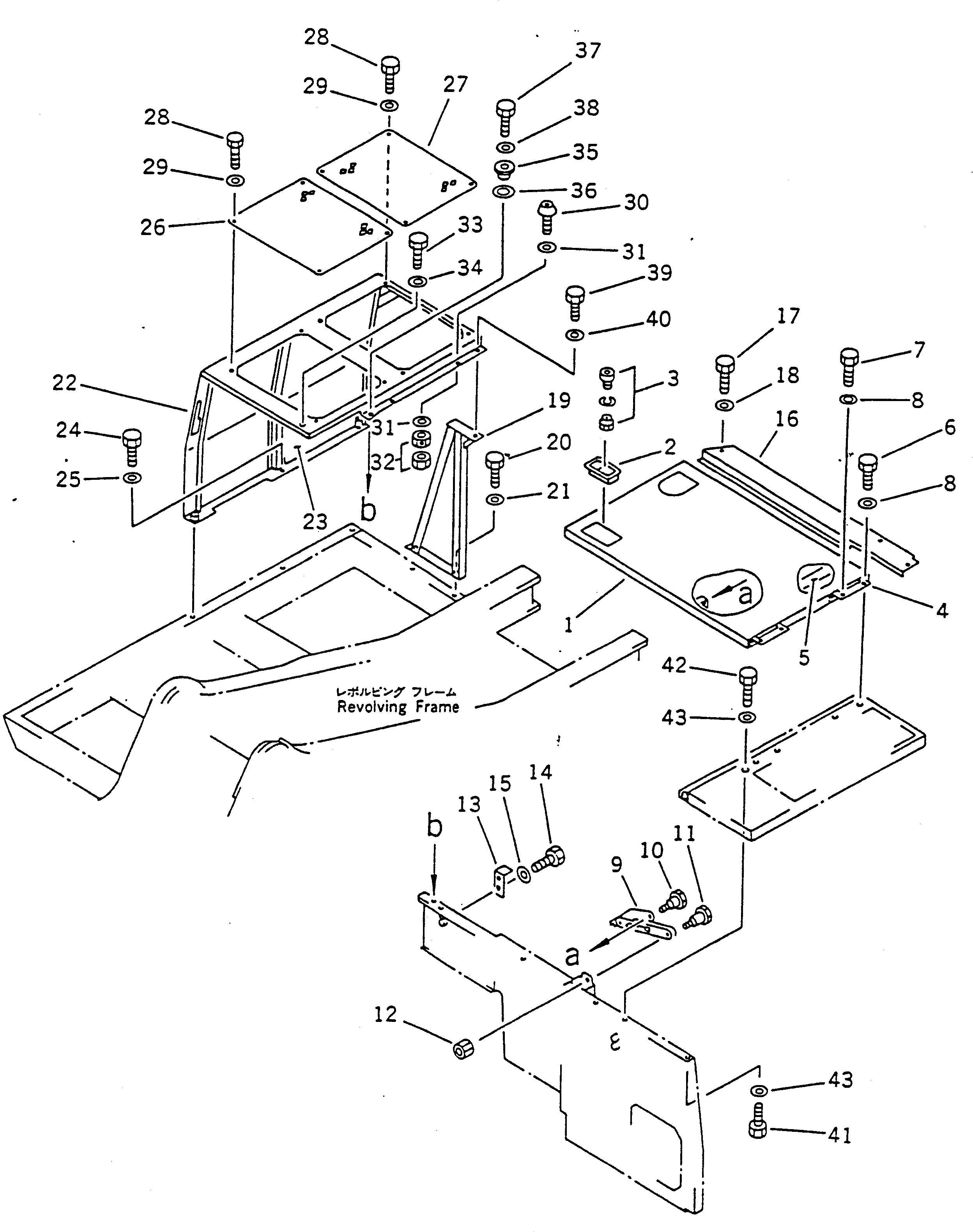

Схема запчастей Komatsu PC100-5 - ПРАВ. COVER(№8-) ЧАСТИ КОРПУСА

Артикул

Название

Примечание

Количество

1

203-54-56362

COVER ASS'Y

|1

203-54-56361

COVER ASS'Y

2

421-54-11372

LOCK ASS'Y (WELDED)

3

421-54-11381

LOCK

4

203-54-52241

HINGE (WELDED)

5

203-54-56731

SHEET

|5

203-54-56730

SHEET

6

01010-51030

BOLT

7

01010-51025

BOLT

8

01643-31032

WASHER

9

203-54-56910

STAY

10

20R-54-21450

BOLT

11

20R-54-21440

BOLT

12

01580-11008

NUT

13

203-54-52181

BRACKET

14

01010-51020

BOLT

15

01643-31032

WASHER

16

203-54-52393

COVER

17

01010-51025

BOLT

18

01643-31032

WASHER

19

203-54-52212

BRACKET

|19

203-54-56390

BRACKET,(WITH SWING FLASHER)

|19

203-54-57110

BRACKET,(FOR POOR FUEL)

20

01010-51025

BOLT

21

01643-31032

WASHER

22

203-54-56770

COVER

|22

203-54-56890

COVER,(WITH VANDALISM PROTECTION)

|22

203-54-56460

COVER,(WITH SWING FLASHER)

23

203-54-56780

SHEET

24

01010-51020

BOLT

25

01643-31032

WASHER

26

203-54-52283

COVER

27

203-54-56660

COVER

|27

203-54-56480

COVER,(WITH SWING FLASHER)

28

01010-51020

BOLT

29

01643-31032

WASHER

30

203-54-56710

STOPPER

31

01643-31032

WASHER

32

01580-11008

NUT

33

01016-51040

BOLT

34

01643-31032

WASHER

35

01010-51035

BOLT

36

01643-31032

WASHER

37

203-54-56920

COLLAR

38

113-54-31350

SEAT

39

01010-51025

BOLT

40

01643-31032

WASHER

41

01010-51025

BOLT

42

01010-51050

BOLT

43

01643-31032

WASHER

Выбрано товаров: 50
