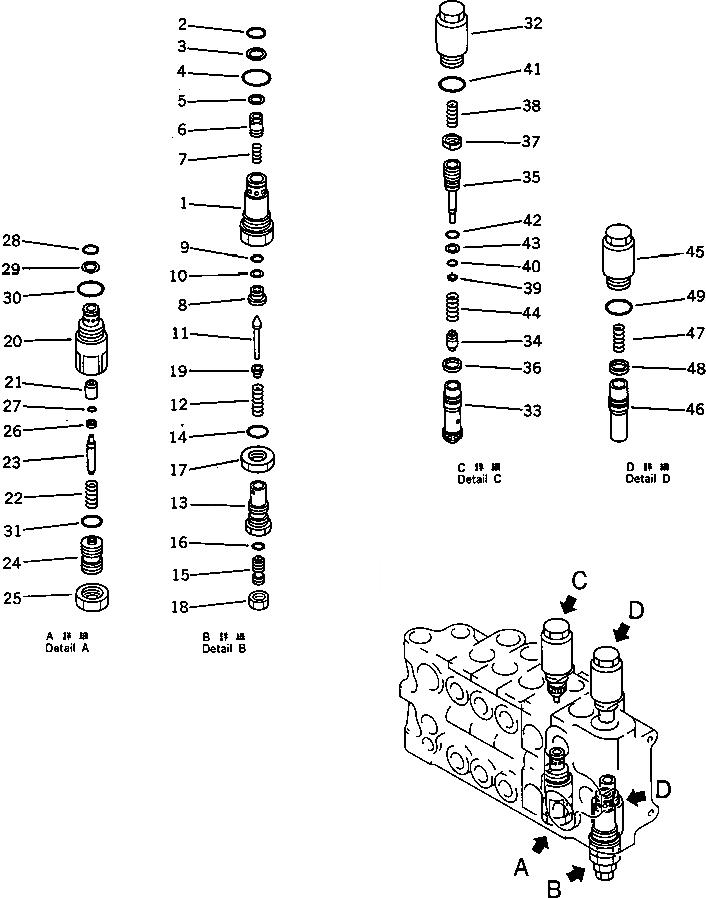

Запчасти Komatsu PC100-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (ДЛЯ WRIST УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-85-27000

CONTROL VALVE ASS'Y,R.H.

|1

700-86-55001

VALVE ASS'Y

1

SLEEVE

2

700-13-31161

O-RING

3

700-80-51190

RING,BACK-UP

4

07002-03334

O-RING

5

700-80-51350

RING,SNAP

6

VALVE

7

700-80-51390

SPRING

8

700-80-51340

SEAT

9

07000-22012

O-RING

10

07001-02012

RING,BACK-UP

11

720-68-15540

POPPET

12

720-68-15560

SPRING

13

700-80-51360

HOLDER

14

07002-02434

O-RING

15

700-80-51630

SCREW

16

07000-02011

O-RING

17

07239-12410

NUT

18

01582-11411

NUT

19

720-68-15550

RETAINER

|20

700-81-74001

VALVE ASS'Y

20

SLEEVE

21

POPPET

22

SPRING

23

PISTON

24

SCREW

25

NUT

26

SEAL

27

O-RING

28

700-22-11410

O-RING

29

700-80-64220

RING,BACK-UP

30

07002-03034

O-RING

31

O-RING

|32

700-81-63001

VALVE ASS'Y,SUCTION AND SAFETY

32

700-80-62310

SLEEVE

33

VALVE

34

POPPET

35

PISTON

36

SEAL

37

NUT

38

700-80-62250

SPRING

39

SEAL

40

O-RING

41

07002-03034

O-RING

42

O-RING

43

RING,BACK-UP

44

SPRING

|45

700-81-81000

VALVE ASS'Y,SUCTION

45

SLEEVE

46

VALVE

47

700-80-62250

SPRING

48

SEAL

49

07002-03034

O-RING
