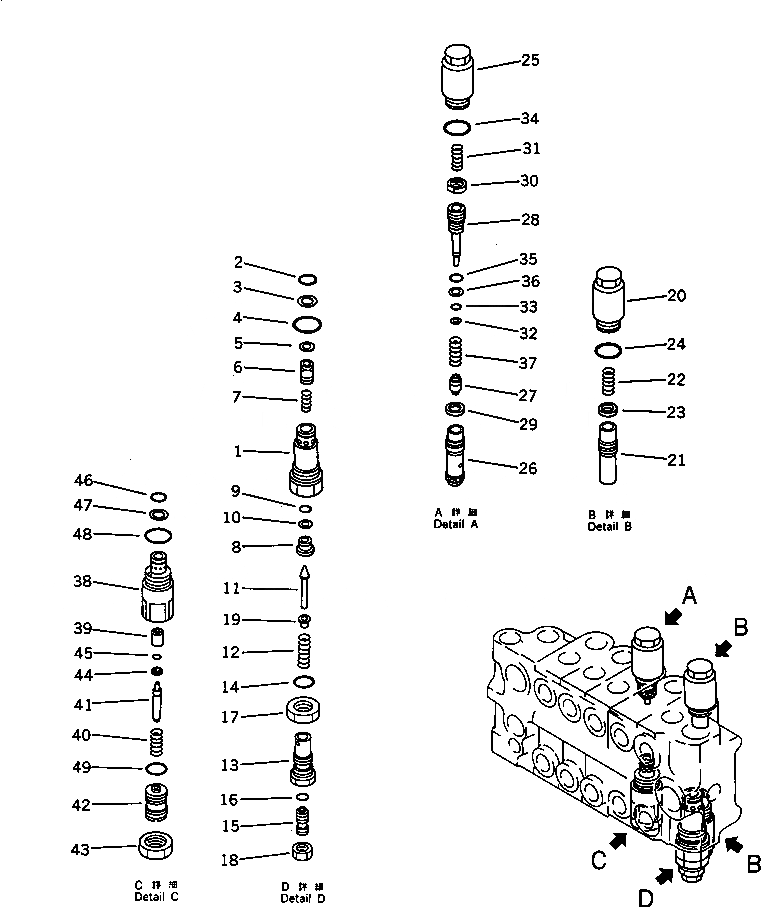

Запчасти Komatsu PC100-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-85-24003

VALVE ASS'Y,R.H.

|1

700-86-55001

VALVE ASS'Y,RELIEF

1

SLEEVE

2

700-13-31161

O-RING

3

700-80-51190

RING,BACK-UP

4

07002-03334

O-RING

5

700-80-51350

RING,SNAP

6

VALVE

7

700-80-51390

SPRING

8

700-80-51340

SEAT

9

07000-22012

O-RING

10

07001-02012

RING,BACK-UP

11

720-68-15540

POPPET

12

720-68-15560

SPRING

13

700-80-51360

HOLDER

14

07002-02434

O-RING

15

700-80-51630

SCREW

16

07000-02011

O-RING

17

07239-12410

NUT

18

01582-11411

NUT

19

720-68-15550

RETAINER

|20

700-81-81000

VALVE ASS'Y,SUCTION

20

SLEEVE

21

VALVE

22

700-80-62250

SPRING

23

SEAL

24

07002-03034

O-RING

|25

700-81-63001

VALVE ASS'Y,SUCTION AND SAFETY

25

700-80-62310

SLEEVE

26

VALVE

27

POPPET

28

PISTON

29

SEAL

30

NUT

31

700-80-62250

SPRING

32

SEAL

33

O-RING

34

07002-03034

O-RING

35

O-RING

36

RING,BACK-UP

37

SPRING

|38

700-81-74001

VALVE ASS'Y,SAFETY

38

SLEEVE

39

POPPET

40

SPRING

41

PISTON

42

SCREW

43

NUT

44

SEAL

45

O-RING

46

700-22-11410

O-RING

47

700-80-64220

RING,BACK-UP

48

07002-03034

O-RING

49

O-RING
