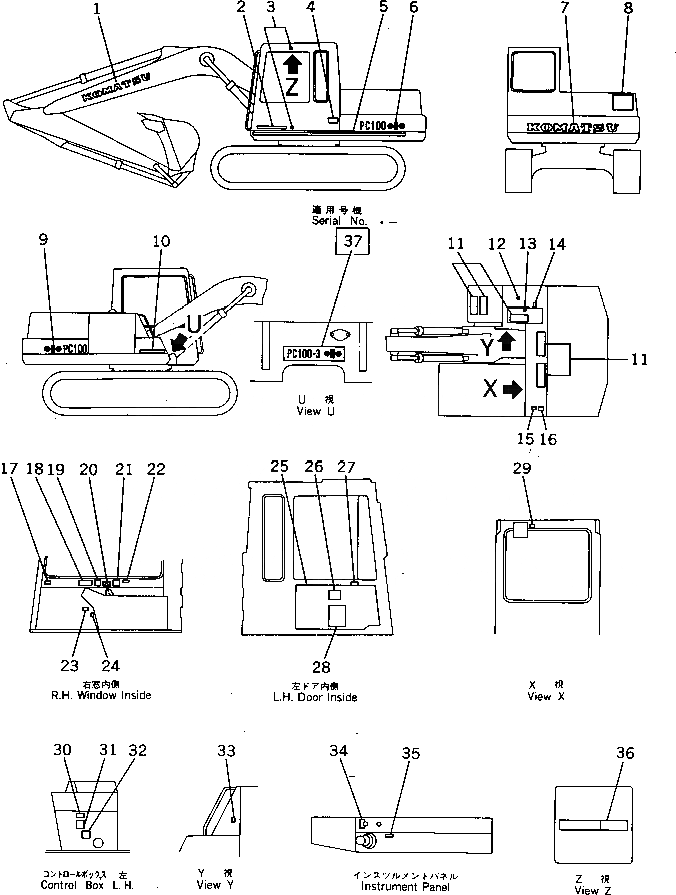

Запчасти Komatsu PC100-3 МАРКИРОВКА (ДЛЯ WRIST УПРАВЛ-Е) (КИТАЙ) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09690-41250

PLATE, MARK,KOMATSU

2

09690-50500

PLATE, MARK,KOMATSU

3

205-00-63770

PLATE

4

09602-91643

PLATE, NAME,(LIMITED SUPPLY)

4

01220-60408

SCREW

4

01601-20410

WASHER,SPRING

5

142-54-16170

STRIPE

6

202-00-51111

PLATE, MARK,PC100 L.H.

7

203-00-41131

PLATE, MARK,KOMATSU

8

09133-09000

PLATE, SAFETY,KEEP OUT OF TURNING AREA

9

202-00-51121

PLATE, MARK,PC100 R.H.

10

09690-50500

PLATE, MARK,KOMATSU

11

154-54-23260

SEAT

12

09669-00002

PLATE, CAUTION,FUEL

13

09669-00003

PLATE, CAUTION,HYDRAULIC OIL TANK

14

09653-09000

PLATE, SAFETY,HYDRAULIC TANK CAP

15

09668-09000

PLATE, SAFETY,RADIATOR CAP

16

09650-90103

PLATE, INSTRUCTION,RADIATOR

17

20D-00-12540

PLATE

18

205-00-66110

PLATE, OPERATING

19

203-00-41380

PLATE

20

20D-00-12660

PLATE

21

20D-00-12590

PLATE, CAUTION

22

09649-09001

PLATE, INSTRUCTION

23

09131-00100

PLATE, SAFETY,SWING LOCK LEVER

24

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

25

203-54-41451

COVER

26

205-00-71310

PLATE, CAUTION

27

205-00-71340

PLATE, OPERATING,DOOR LOCK

28

203-00-41150

CHART, OIL

29

205-00-63230

PLATE, CAUTION,INSPECTION AND MAINTENANCE

30

09651-00100

PLATE, SAFETY,BEFORE OPERATING

31

09173-00100

PLATE, SAFETY

32

09667-00100

PLATE, SAFETY

33

203-00-31120

PLATE, INSTRUCTION,HYDRAULIC OIL TANK

34

09683-01060

PLATE, OPERATING

35

09685-00001

PLATE, OPERATING,SAFETY LOCK LEVER

36

203-00-31410

PLATE, SAFETY,GAS SPRING

37

21K-00-22170

PLATE, MARK
