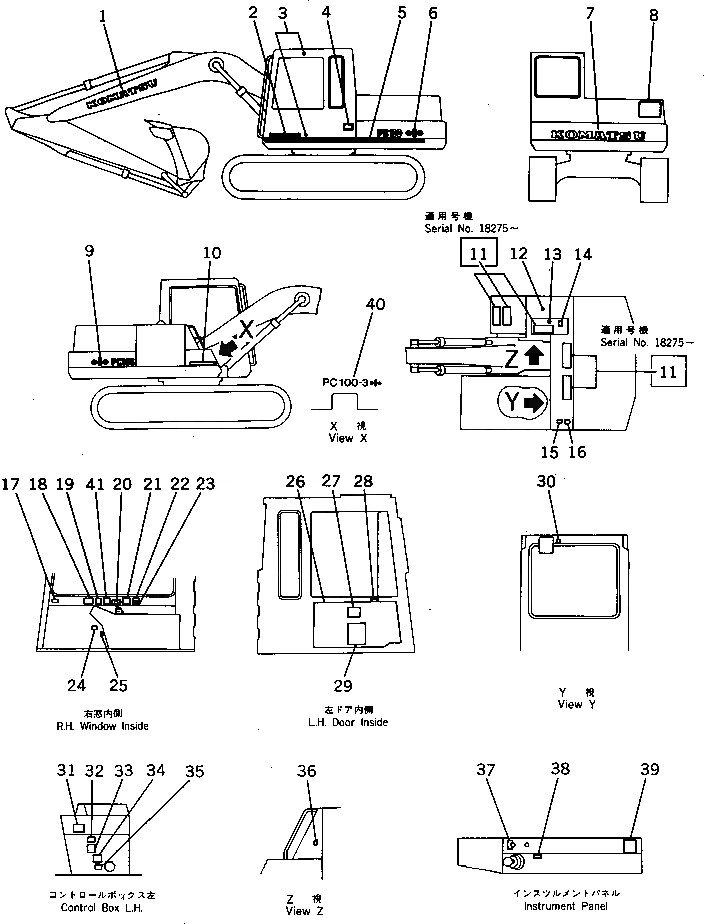

Запчасти Komatsu PC100-3 МАРКИРОВКА (ДЛЯ WRIST УПРАВЛ-Е) (АНГЛ.) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09690-41250

PLATE, MARK,KOMATSU

2

09690-50500

PLATE, MARK,KOMATSU

3

205-00-63770

PLATE

4

09602-01643

PLATE, NAME,(LIMITED SUPPLY)

4

01220-60408

SCREW

4

01601-20410

WASHER,SPRING

5

142-54-16170

STRIPE

5

203-00-41140

PLATE, STRIPE,STRIPE

6

202-00-51111

PLATE, MARK,PC100 L.H.

7

203-00-41131

PLATE, MARK,KOMATSU

8

09133-00100

PLATE, SAFETY,KEEP OUT OF TURNING AREA

9

202-00-51121

PLATE, MARK,PC100 R.H.

10

09690-50500

PLATE, MARK,KOMATSU

11

154-54-23260

SEAT,NONSKID

12

09669-00002

PLATE, CAUTION,FUEL

13

09669-00003

PLATE, CAUTION,HYDRAULIC OIL TANK

14

09653-03000

PLATE, SAFETY,HYDRAULIC TANK CAP

15

09668-03000

PLATE, SAFETY,RADIATOR CAP

16

205-00-65270

PLATE, CAUTION,RADIATOR

16

09650-30103

PLATE, INSTRUCTION,RADIATOR

17

205-00-63360

PLATE, CAUTION

18

205-00-66110

PLATE, OPERATING

19

205-00-75340

PLATE

20

205-00-63550

PLATE, CAUTION

21

205-00-63390

PLATE, CAUTION

22

09649-03001

PLATE, INSTRUCTION

23

203-00-31350

PLATE, CAUTION

24

09131-03000

PLATE, SAFETY,SWING LOCK LEVER

25

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

26

203-54-41551

COVER

26

203-54-41550

COVER

27

205-00-63340

PLATE, CAUTION

28

205-00-71340

PLATE, OPERATING,DOOR LOCK

29

203-00-41221

CHART, OIL

29

203-00-41220

CHART, OIL

30

205-00-63350

PLATE, CAUTION,INSPECTION AND MAINTENANCE

31

203-00-31340

PLATE, CAUTION

32

09651-03000

PLATE, SAFETY,BEFORE OPERATING

33

09173-03000

PLATE, SAFETY

34

09667-03000

PLATE, SAFETY

35

203-00-41180

PLATE, OPERATING

36

203-00-31120

PLATE, INSTRUCTION,HYDRAULIC OIL TANK

37

09683-30060

PLATE, OPERATING

38

09685-00001

PLATE, OPERATING,SAFETY LOCK LEVER

39

203-00-41311

PLATE, OPERATING

40

21K-00-22170

PLATE, MARK

41

205-00-71940

PLATE
