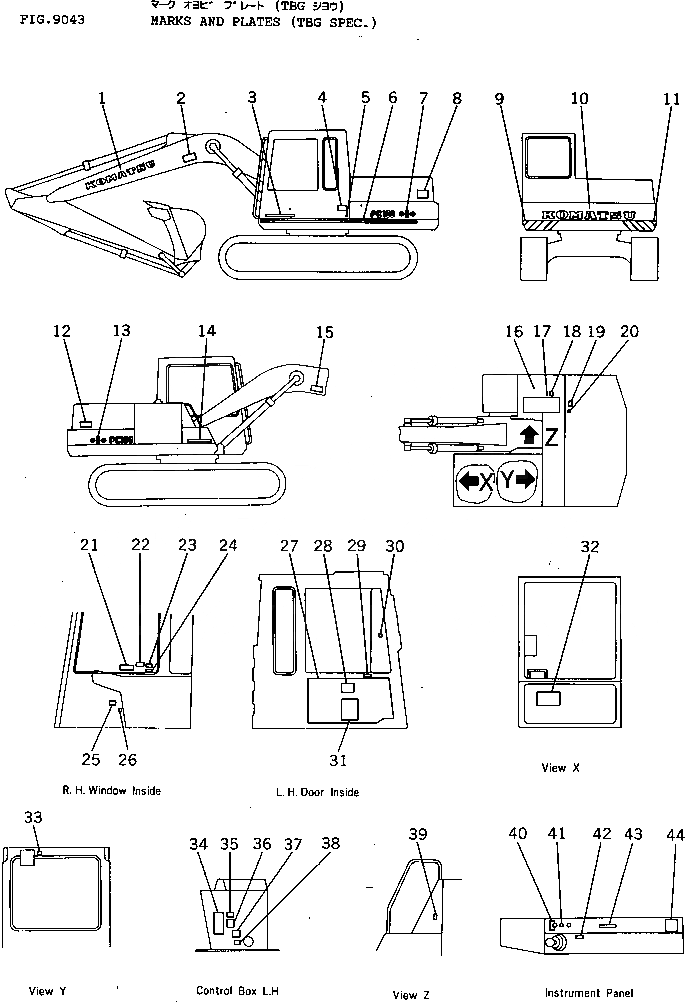

Запчасти Komatsu PC100-3 МАРКИРОВКА (СПЕЦ-Я TBG) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
1
09690-01250
PLATE, MARK,KOMATSU
2
20T-98-22240
PLATE, SAFETY,KEEP OUT OF TURNING AREA
3
09690-10500
PLATE, MARK,KOMATSU
4
09602-21643
PLATE, NAME,(LIMITED SUPPLY)
4
01220-60408
SCREW
4
01601-20410
WASHER,SPRING
5
205-00-63770
PLATE
6
203-00-41140
PLATE, STRIPE,STRIPE
7
202-00-51110
PLATE, MARK,PC100 L.H.
8
20T-98-22240
PLATE, SAFETY,KEEP OUT OF TURNING AREA
9
203-00-41260
PLATE, CAUTION,ZEBRA MARK, L.H.
10
203-00-41130
PLATE, MARK,KOMATSU
11
203-00-41270
PLATE, CAUTION,ZEBRA MARK, R.H.
12
20T-98-22240
PLATE, SAFETY,KEEP OUT OF TURNING AREA
13
202-00-51120
PLATE, MARK,PC100, R.H.
14
09690-10500
PLATE, MARK,KOMATSU
15
20T-98-22240
PLATE, SAFETY,KEEP OUT OF TURNING AREA
16
09669-00002
PLATE, CAUTION,FUEL
17
09669-00003
PLATE, CAUTION,HYDRAULIC OIL TANK
18
09653-02000
PLATE, SAFETY,HYDRAULIC TANK CAP
19
09650-21103
PLATE, INSTRUCTION,RADIATOR
20
09668-02000
PLATE, SAFETY,RADIATOR CAP
21
207-00-13490
PLATE, CAUTION
22
207-00-13480
PLATE, CAUTION
23
09649-02001
PLATE, INSTRUCTION
24
21K-54-27180
PLATE, OPERATING,DECELERATION
25
09131-02000
PLATE, SAFETY,SWING LOCK LEVER
26
09685-00002
PLATE, OPERATING,SWING LOCK LEVER
27
203-54-41450
COVER
28
207-00-13541
PLATE, SAFETY
28
207-00-13540
PLATE, SAFETY
29
205-00-71340
PLATE, OPERATING,DOOR LOCK
30
207-00-13460
PLATE, CAUTION
31
203-00-41210
CHART, OIL
32
205-00-66110
PLATE, OPERATING
33
207-00-13450
PLATE,AUTO LOCK
34
21K-54-27170
PLATE, CAUTION,OPERATING
35
09651-02000
PLATE, SAFETY,BEFORE OPERATING
36
09173-02000
PLATE, SAFETY,INSPECTION AND MAINTENANCE
37
20T-98-22330
PLATE, SAFETY,OPERATING
38
203-00-41180
PLATE, OPERATING
39
207-00-13530
PLATE,HYDRAULIC OIL TANK
40
09683-21060
PLATE, OPERATING
41
09679-01801
PLATE, OPERATING
42
09685-00001
PLATE, OPERATING,SAFETY LOCK LEVER
43
362-54-17320
PLATE, OPERATING,ENGINE CONTROL LEVER
44
203-00-41321
PLATE, OPERATING
Выбрано товаров: 47
