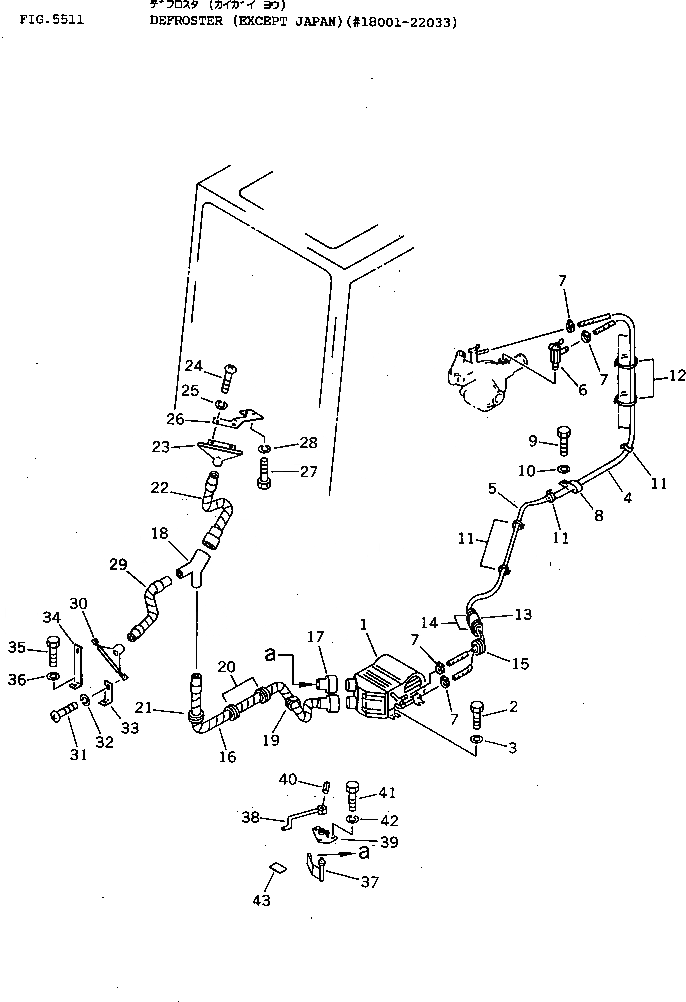

Запчасти Komatsu PC100-3 АНТИОБЛЕДЕНИТЕЛЬ (КРОМЕ ЯПОН.)(№8-) ОСНОВНАЯ РАМА И КАБИНА

1

20G-977-2130

HEATER UNIT

2

01010-51025

BOLT

3

01643-31032

WASHER

4

09483-00432

HOSE

5

09483-00430

HOSE

6

203-977-4130

VALVE

7

09480-10100

CLAMP

8

176-911-4170

CLIP

9

01010-51020

BOLT

10

01643-31032

WASHER

11

08034-00519

BAND

12

08034-00536

BAND

13

203-62-41150

COVER

14

08034-00519

BAND

15

154-54-11292

GROMMET

16

21K-977-1270

HOSE

17

21K-977-1290

JOINT

18

20G-977-2150

JOINT

19

20G-977-1960

GROMMET

20

08037-05022

GROMMET

21

08037-05016

GROMMET

22

20G-977-2170

HOSE

23

09486-10000

NOZZLE

24

01220-40510

SCREW

25

01601-20513

WASHER,SPRING

26

203-977-4161

BRACKET

27

01010-50612

BOLT

28

01602-20619

WASHER,SPRING

29

09485-04503

HOSE,AIR

30

362-977-3190

NOZZLE

31

01220-40516

SCREW

32

01601-20513

WASHER,SPRING

33

20G-977-2190

PLATE,L.H.

34

20G-977-2180

PLATE,R.H.

35

01010-50616

BOLT

36

01641-20608

WASHER

37

203-977-4150

COVER

38

20G-977-1940

LEVER

39

20G-977-1950

COVER

40

04025-00324

PIN

41

01010-50820

BOLT

42

01602-20825

WASHER,SPRING

43

203-00-33130

PLATE
