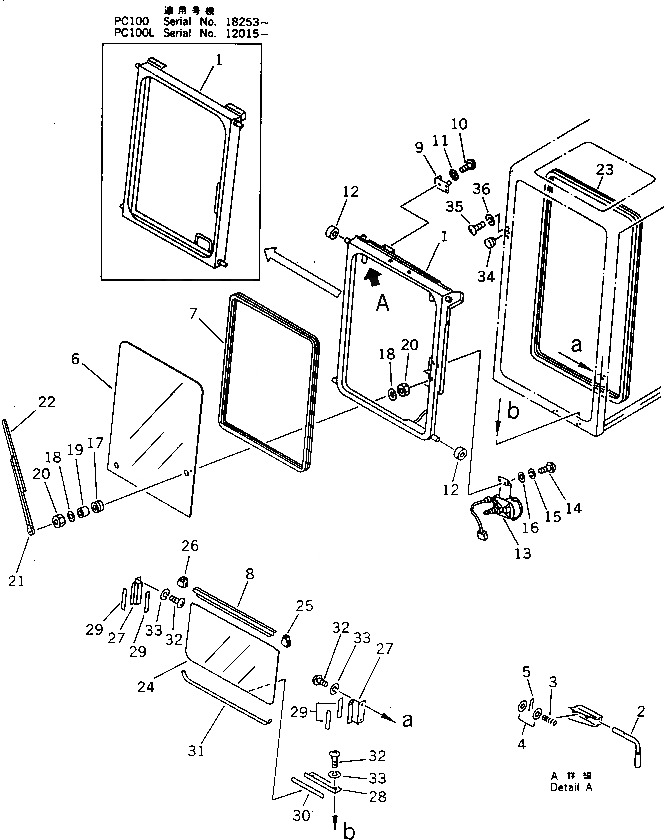

Запчасти Komatsu PC100-3 КАБИНА (/) (КРОМЕ ЯПОН.)(№8-9999) ОСНОВНАЯ РАМА И КАБИНА

|$0

203-54-00342

OPERATOR'S CAB ASS'Y

|$1

203-54-00341

OPERATOR'S CAB ASS'Y

|$2

203-54-00340

OPERATOR'S CAB ASS'Y

|$4

20G-54-00031

FRONT WINDOW ASS'Y

|$5

20G-54-00030

FRONT WINDOW ASS'Y

1

203-54-43471

WINDOW,FRONT

1

203-54-43470

WINDOW,FRONT

2

203-54-43650

PIN

3

205-54-66330

SPRING

4

01641-21016

WASHER

5

04050-13018

PIN,COTTER

6

203-54-43560

GLASS

7

205-54-71520

STRIP,WEATHER

7

203-54-43510

STRIP,WEATHER

8

203-54-43940

SEAL

9

566-54-24511

STRIKER

10

01244-40820

SCREW

11

205-54-72750

WASHER,LOCK

12

205-54-72590

ROLLER

13

203-06-41720

WIPER MOTOR ASS'Y

14

01220-40516

SCREW

15

01601-20513

WASHER,SPRING

16

01641-20508

WASHER

17

205-06-62230

GROMMET

18

205-06-62270

WASHER

19

205-06-62240

COLLAR

20

205-06-62250

NUT

21

205-06-71420

ARM

21A

ND857199-0100

PIN KIT

22

205-06-71430

BLADE

22

205-06-62570

BLADE

23

203-54-43950

TRIM

|$33

205-54-76310

GLASS ASS'Y

24

205-54-71220

GLASS

25

205-54-72731

SEAL,L.H.

26

205-54-72721

SEAL,R.H.

27

203-54-43980

PROTECTOR

28

203-54-43960

PROTECTOR

29

203-54-43990

RUBBER

30

203-54-43970

RUBBER

31

203-54-44970

RUBBER

32

01220-40612

SCREW

33

01602-20619

WASHER,SPRING

34

09415-01008

CAP

35

01220-40412

SCREW

36

01601-20410

WASHER,SPRING
