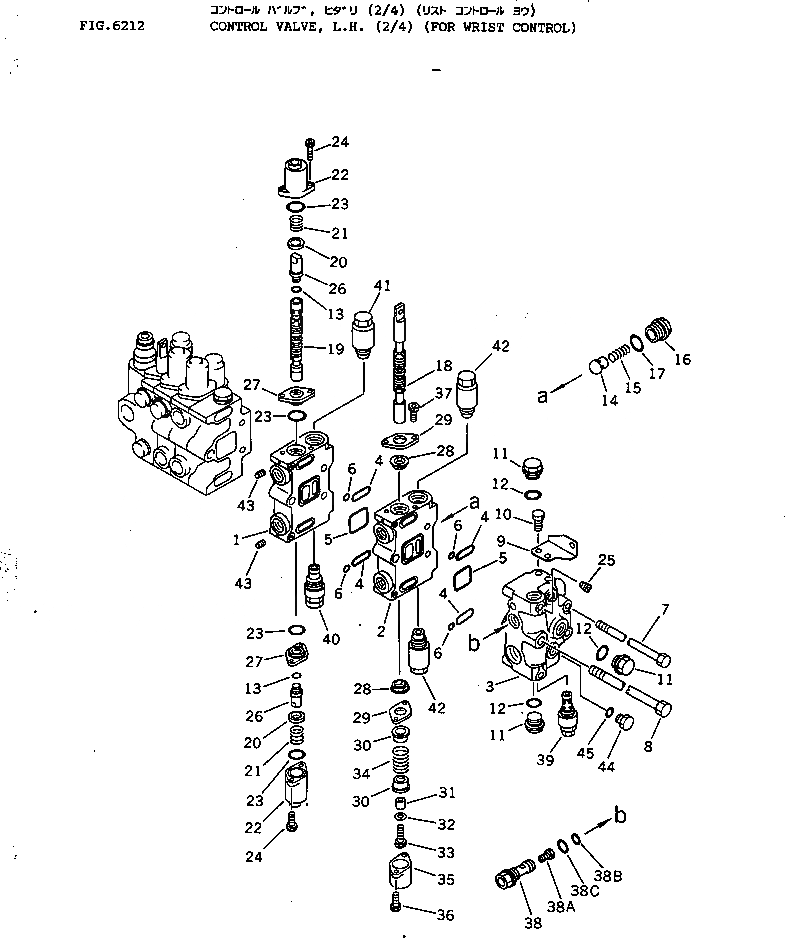

Запчасти Komatsu PC100-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) (ДЛЯ WRIST УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-86-19001

CONTROL VALVE ASS'Y,L.H.

1

BLOCK,VALVE

2

BLOCK,VALVE

3

COVER,VALVE

4

07000-03030

O-RING

5

07000-13050

O-RING

6

07000-01007

O-RING

7

700-87-11110

BOLT

8

700-87-11120

BOLT

9

700-84-13830

BRACKET

10

01010-51020

BOLT

11

700-22-11370

PLUG

12

07002-12434

O-RING

13

07002-11223

O-RING

14

700-42-31460

VALVE

15

700-42-31470

SPRING

16

700-84-11320

PLUG

17

07002-13034

O-RING

18

SPOOL,L.H. TRAVEL

19

SPOOL,ARM LOW

20

700-84-13781

RETAINER

21

700-84-13770

SPRING

22

700-84-12510

CASE

23

700-84-11240

O-RING

24

01252-30625

BOLT

25

07043-70108

PLUG

26

700-84-13790

JOINT

27

700-84-13490

PLATE

28

700-84-13910

SEAL

29

700-84-13891

PLATE

30

700-84-13711

RETAINER

31

700-84-11640

COLLAR

32

01643-30823

WASHER

33

01252-30830

BOLT

34

700-84-11650

SPRING

35

700-84-11390

COVER

36

01252-30625

BOLT

37

01252-30612

BOLT

|$39

700-84-13860

ORIFICE ASS'Y

38

700-84-13840

ORIFICE

38A

700-84-13850

SENSOR

38B

07000-02014

O-RING

38C

07002-02434

O-RING

39

700-26-53000

VALVE ASS'Y,RELIEF

40

700-81-71001

SAFETY VALVE ASS'Y

41

700-81-61001

VALVE ASS'Y,SUCTION AND SAFETY

42

700-81-81000

VALVE ASS'Y,SUCTION

43

706-86-51170

PLUG

44

07040-11409

PLUG

45

07002-01423

O-RING
