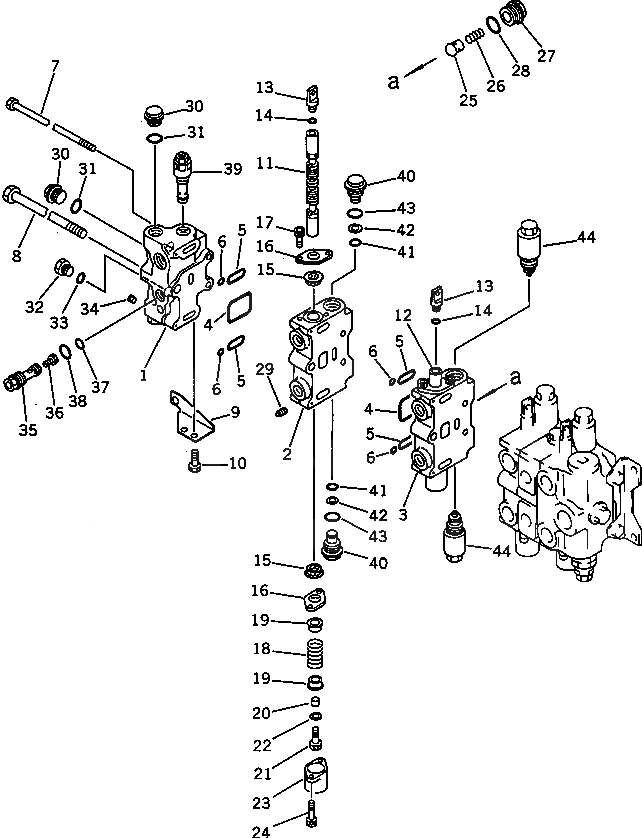

Запчасти Komatsu PC100-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-85-24003

VALVE ASS'Y,R.H.

1

COVER,VALVE

2

BLOCK,VALVE

3

BLOCK,VALVE

4

07000-13050

O-RING

5

07000-03030

O-RING

6

07000-01007

O-RING

7

700-86-11112

BOLT

8

700-84-13220

BOLT

9

700-84-13480

BRACKET

10

01010-51020

BOLT

11

SPOOL,ARM

12

SPOOL,BOOM

13

700-84-11870

JOINT

14

07002-11223

O-RING

15

700-84-13910

SEAL

16

700-84-13891

PLATE

17

01252-30612

BOLT

18

700-84-11650

SPRING

19

700-84-13711

RETAINER

20

700-84-11640

COLLAR

21

01252-30830

BOLT

22

01643-30823

WASHER

23

700-84-11390

COVER

24

01252-30625

BOLT

25

700-42-31460

VALVE

26

700-42-31470

SPRING

27

700-84-11320

PLUG

28

07002-13034

O-RING

29

706-86-51170

PLUG

30

700-22-11370

PLUG

31

07002-12434

O-RING

32

07040-11409

PLUG

33

07002-01423

O-RING

34

07043-70108

PLUG

|$36

700-84-13860

ORIFICE ASS'Y

35

700-84-13840

ORIFICE

36

700-84-13850

SENSOR

37

07000-02014

O-RING

38

07002-02434

O-RING

39

700-26-53000

VALVE ASS'Y

40

700-84-13960

PLUG

41

700-22-11410

O-RING

42

700-80-64220

RING,BACK-UP

43

07002-03034

O-RING

44

700-81-61001

VALVE ASS'Y,SUCTION AND SAFETY
