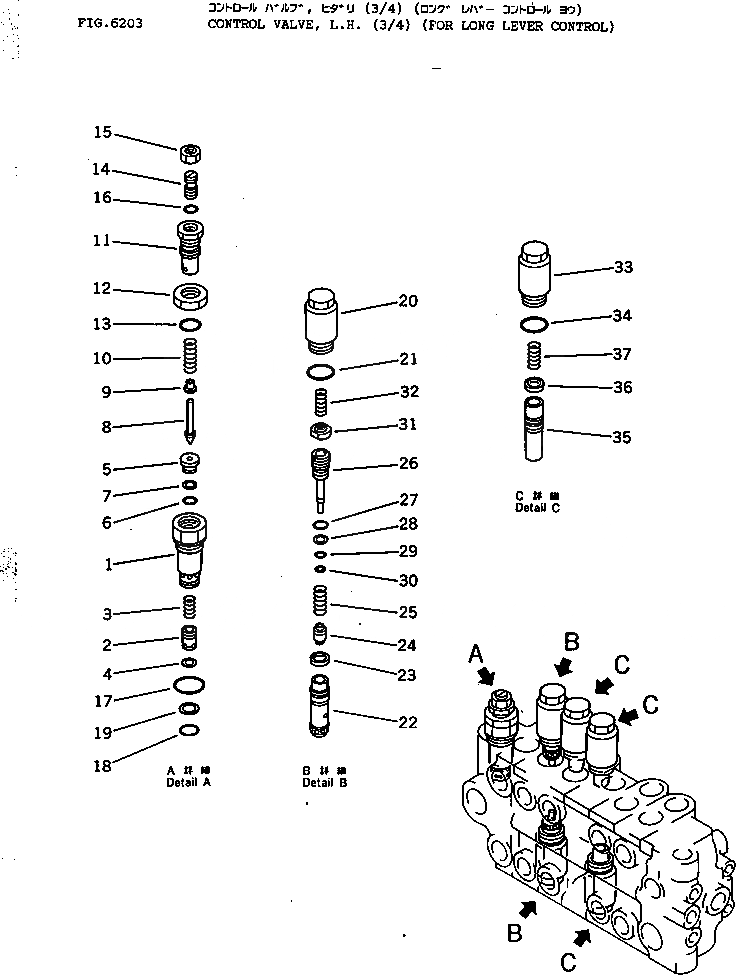

Запчасти Komatsu PC100-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-86-23003

CONTROL VALVE ASS'Y,L.H.

|$2

700-86-55001

VALVE ASS'Y,RELIEF

1

SLEEVE

2

VALVE

3

700-80-51390

SPRING

4

700-80-51350

RING,SNAP

5

700-80-51340

SEAT

6

07000-22012

O-RING

7

07001-02012

RING,BACK-UP

8

720-68-15540

POPPET

9

720-68-15550

RETAINER

10

720-68-15560

SPRING

11

700-80-51360

HOLDER

12

07239-12410

NUT

13

07002-02434

O-RING

14

700-80-51630

SCREW

15

01582-11411

NUT

16

07000-02011

O-RING

17

07002-03334

O-RING

18

700-13-31161

O-RING

19

700-80-51190

RING,BACK-UP

|$22

700-81-61001

VALVE ASS'Y,SUCTION AND SAFETY

20

700-80-62310

SLEEVE

21

07002-03034

O-RING

22

VALVE

23

SEAL

24

POPPET

25

SPRING

26

PISTON

27

O-RING

28

RING,BACK-UP

29

O-RING

30

SEAL

31

NUT

32

700-80-62250

SPRING

|$36

700-81-81000

VALVE ASS'Y,SUCTION

33

SLEEVE

34

07002-03034

O-RING

35

VALVE

36

SEAL

37

700-80-62250

SPRING
