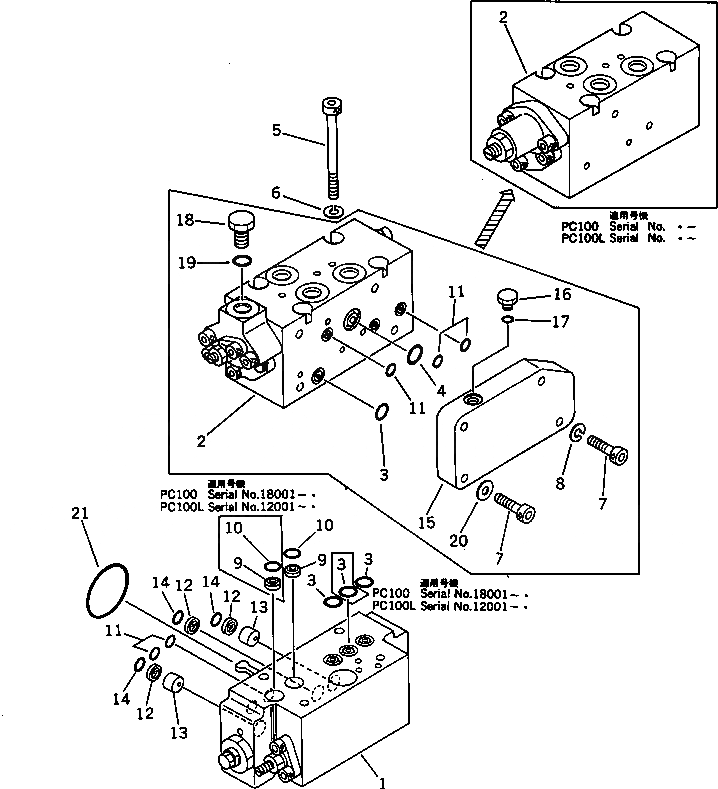

Запчасти Komatsu PC100-3 СЕРВОКЛАПАН¤ ЗАДН. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|$0
708-23-01012
PUMP ASS'Y,(HPV55+55)
|$1
708-23-01011
PUMP ASS'Y,(HPV55+55)
|$2
708-23-01010
PUMP ASS'Y,(HPV55+55)
|$3
708-23-10101
PUMP ASS'Y,(HPV55+55)
|$5
708-23-07211
SERVO VALVE ASS'Y,REAR
|$6
708-23-07210
SERVO VALVE ASS'Y,REAR
|$7
708-23-16100
SERVO VALVE ASS'Y,REAR
1
708-23-16200
SERVO VALVE SUB A.,REAR
2
708-23-07611
VALVE ASS'Y,CO AND NC
2
708-23-07610
VALVE ASS'Y,CO AND NC
2
708-23-17300
VALVE ASS'Y,CO AND NC
2
708-23-17100
VALVE ASS'Y,CO AND NC
3
07000-02011
O-RING
3
07000-02011
O-RING
4
07000-02018
O-RING
5
708-25-19160
BOLT
6
01602-20825
WASHER,SPRING
7
01252-30835
BOLT
8
01602-20825
WASHER,SPRING
9
720-68-11920
FILTER
9
720-68-11920
FILTER
10
07000-12010
O-RING
10
07000-12010
O-RING
11
07000-11009
O-RING
11
07000-11009
O-RING
12
720-68-11920
FILTER
13
708-23-19130
ORIFICE
14
07000-12010
O-RING
15
708-23-18241
PLATE
16
07040-11007
PLUG
17
07002-01023
O-RING
18
07040-11409
PLUG
19
07002-01423
O-RING
20
01643-30823
WASHER
21
07000-03048
O-RING
Выбрано товаров: 35
