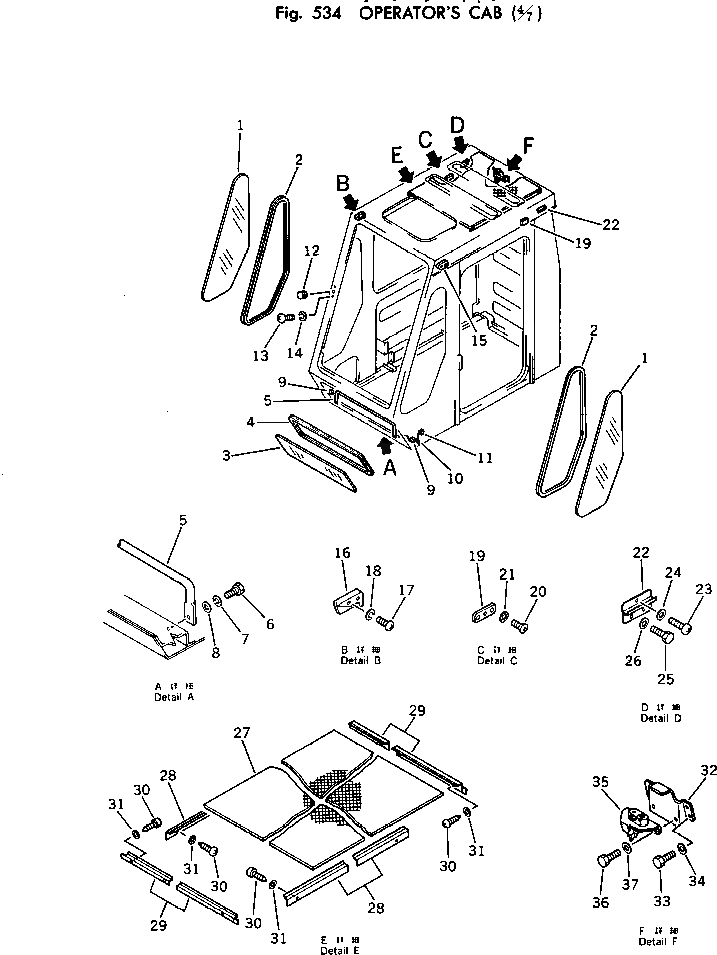

Запчасти Komatsu PC100-2 КАБИНА (/7) ОСНОВНАЯ РАМА И КАБИНА

|1

203-54-00112

OPERATOR'S CAB ASS'Y

1

205-54-61341

GLASS

2

205-54-63530

SEAL

3

205-54-61323

GLASS

4

205-54-63342

STRIP,WEATHER

5

205-54-63370

REST

6

01010-30825

BOLT

7

01602-00825

WASHER

8

01641-00812

WASHER

9

08037-01008

GROMMET

10

205-06-61183

WIRE ASS'Y

11

08027-01410

CONNECTOR

12

09415-01610

CAP

13

01220-40512

SCREW

14

01601-20513

WASHER

15

205-54-63280

TAIL,DOVE

16

205-54-63270

TAIL,DOVE

17

01220-40625

SCREW

18

01601-20619

WASHER

19

205-54-63330

LOCK

20

01224-40820

SCREW

21

205-54-53730

WASHER

22

205-54-61511

BRACKET

23

01220-40820

SCREW

24

01643-30823

WASHER

25

01010-30820

BOLT

26

01643-30823

WASHER

27

205-54-61372

SEAT

28

205-54-61392

FINISHER

29

205-54-61381

FINISHER

30

01370-00412

SCREW

31

01641-20405

WASHER

32

205-54-63320

BRACKET

33

01010-50820

BOLT

34

01643-30823

WASHER

35

205-54-63310

LOCK ASS'Y

36

01010-50820

BOLT

37

01643-30823

WASHER
