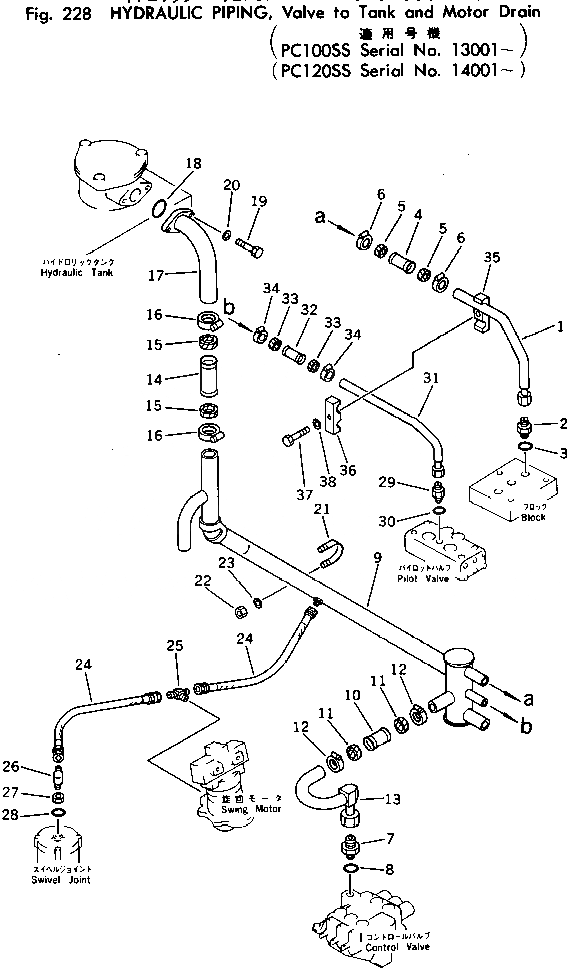

Запчасти Komatsu PC100-2 ГИДРОЛИНИЯ¤ КЛАПАН - БАК И МОТОР ДРЕНАЖН. (PCSS) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

1

203-62-86550

TUBE

2

07230-10628

UNION

3

07002-12434

O-RING

4

07332-00600

COUPLING ASS'Y

5

07332-50600

GASKET

6

07332-60600

CLAMP

7

07230-11034

UNION

8

07002-13334

O-RING

9

203-62-86371

TUBE

10

07332-01000

COUPLING ASS'Y

11

07332-51000

GASKET

12

07332-61000

CLAMP

13

203-62-86540

TUBE

14

07332-01400

COUPLING ASS'Y

15

07332-51400

GASKET

16

07332-61400

CLAMP

17

203-62-31760

TUBE

18

07000-03045

O-RING

19

01010-31235

BOLT

20

01643-31232

WASHER

21

07283-24949

CLIP

22

01599-01011

NUT

23

01643-31032

WASHER

24

07102-20305

HOSE

25

12R-49-12580

TEE

26

07232-10315

ELBOW

27

07239-12009

NUT

28

07002-02034

O-RING

29

203-62-32510

NIPPLE

30

07002-12434

O-RING

31

203-62-86560

TUBE

32

07332-00400

COUPLING ASS'Y

33

07332-50400

GASKET

34

07332-60400

CLAMP

35

203-62-86570

CLAMP

36

203-62-86580

CLAMP

37

01010-31045

BOLT

38

01643-31032

WASHER
