Запчасти Komatsu PC100-2 PКАНАТL МОТОР (/) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

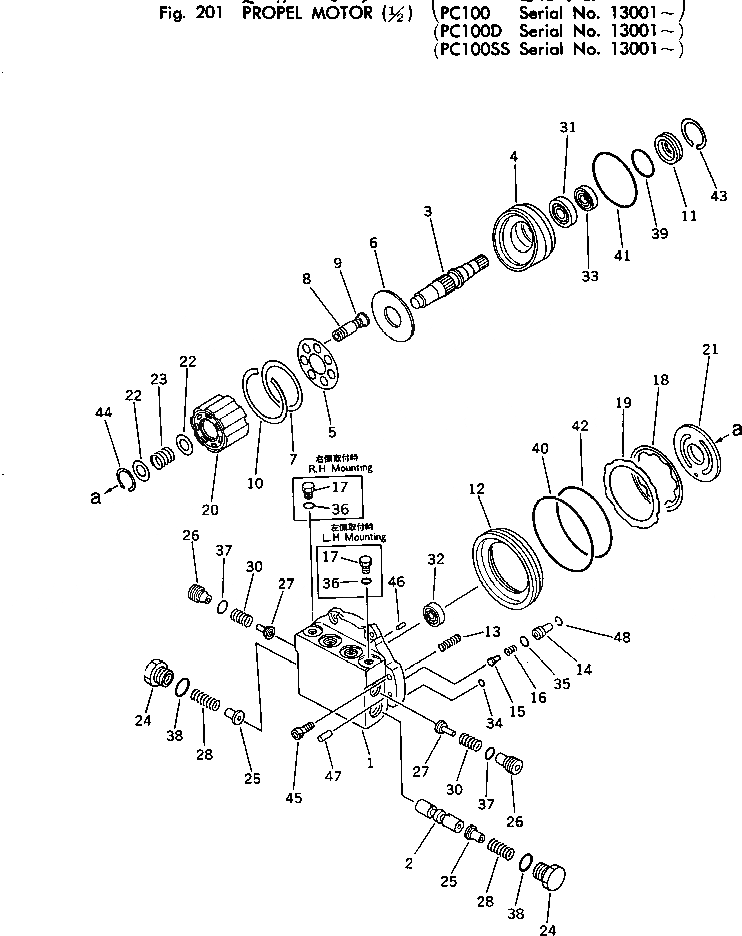

Схема запчастей Komatsu PC100-2 - PКАНАТL МОТОР (/) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

Артикул

Название

Примечание

Количество

|1

202-60-00100

MOTOR ASS'Y

|1

TZ230F2101-00A

FLANGE SPOOL ASS'Y

1

FLANGE

2

SPOOL

3

TZ230F2002-00

SHAFT

|4

TZ20F2101-01N

SWASH PLATE ASS'Y

4

PLATE,SWASH

5

PLATE,RETAINER

6

PLATE,THRUST

7

PIECE,DISTANCE

8

PISTON

9

SHOE

10

RING

11

TZ200F2004-00

COVER

12

TZ100A2012-01

PISTON

13

TZ100A2013-00

SPRING

14

TZ100A2018-00

SEAT

15

TZ100A2019-00

VALVE

16

TZ100A2020-00

SPRING

17

TZ100A2021-00

PLUG

18

TZ230F2018-00

PLATE

19

TZ100A2016-00

PLATE

20

TZ230F2020-00

BLOCK

21

TZ230F2024-00

PLATE,TIMING

22

TZ43E2025-00

WASHER

23

TZ43E2028-01

SPRING

24

TZ100A2051-00

PLUG

25

TZ100A2052-00

STOPPER

26

TZ100A2053-01

PLUG

27

TZ100A2054-01

VALVE

28

TZ100A2055-00

SPRING

30

TZ100A2057-01

SPRING

31

06000-06307

BEARING

32

06000-06005

BEARING

33

TZ03205211

SEAL (KIT)

34

07000-11006

O-RING (KIT)

35

07000-11009

O-RING (KIT)

36

07002-12034

O-RING (KIT)

37

07000-12020

O-RING (KIT)

38

07000-13032

O-RING (KIT)

39

07000-12075

O-RING (KIT)

40

07000-15170

O-RING (KIT)

41

TZOWG-13127

O-RING (KIT)

42

07000-15145

O-RING (KIT)

43

04065-08025

RING

44

TZIRT04818

RING

45

01252-31035

BOLT

46

TZPP0050-14

PIN

47

TZPP0100-28

PIN

48

TZ100A2022-00

RING

Выбрано товаров: 50
