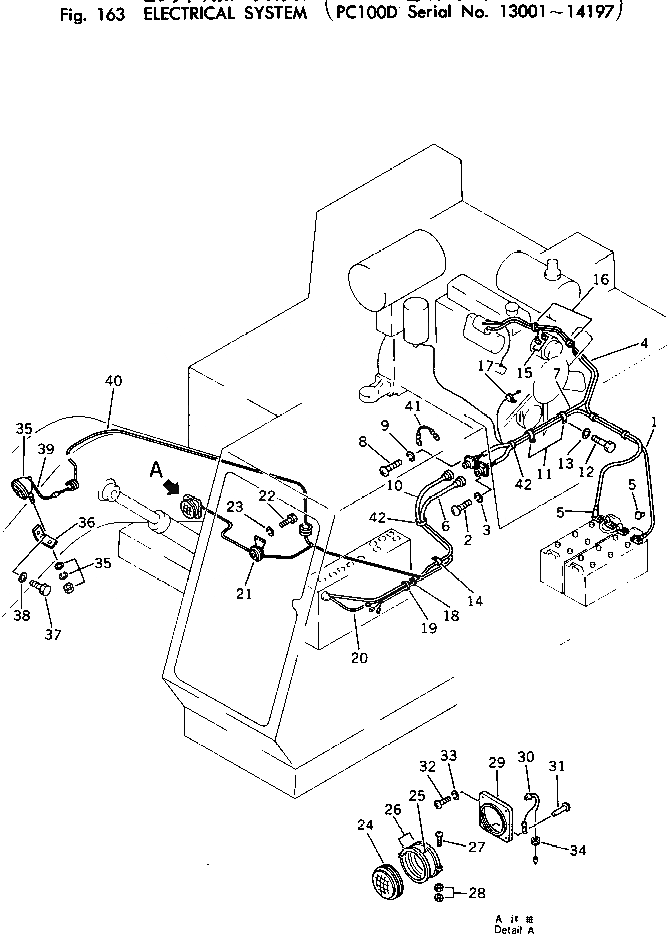

Запчасти Komatsu PC100-2 ЭЛЕКТРИКА (PCD)(№-97) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

202-06-41140

WIRE

2

01220-40412

SCREW

3

01602-20410

WASHER

4

08028-13175

CABLE

5

08038-06031

CAP

6

202-06-41150

WIRE

7

202-06-41121

WIRE ASS'Y

8

01220-40312

SCREW

9

01601-20307

WASHER

10

202-06-41131

WIRE ASS'Y

11

08036-03014

CLIP

12

01010-31025

BOLT

13

01643-31032

WASHER

14

08036-01814

CLIP

15

08038-00519

CAP

16

08034-00414

BAND

17

08036-10610

CLIP

18

08034-00519

BAND

19

206-54-15750

SEAL

20

08028-13150

CABLE

21

175-06-39170

HORN

22

01010-30816

BOLT

23

01602-00825

WASHER

|24

203-06-31300

LAMP ASS'Y

24

08113-02480

BULB¤ 80W

25

08128-00003

HOLDER

26

08128-00004

BAND

27

01220-40420

SCREW

28

01580-10403

NUT

29

203-06-31341

BASE

30

175-06-23230

SOCKET

31

04400-00412

RIVET

32

01220-30816

SCREW

33

01602-00825

WASHER

34

08037-01610

GROMMET

35

08128-32400

LAMP

|35

08113-02480

BULB¤ 80W

|35

08128-00003

HOLDER

|35

08128-00004

BAND

36

203-06-21290

PLATE

37

01010-31430

BOLT

38

01643-31445

WASHER

39

205-06-51390

CABLE

40

203-06-21331

WIRE

41

08028-12045

CABLE

42

08034-00414

BAND
