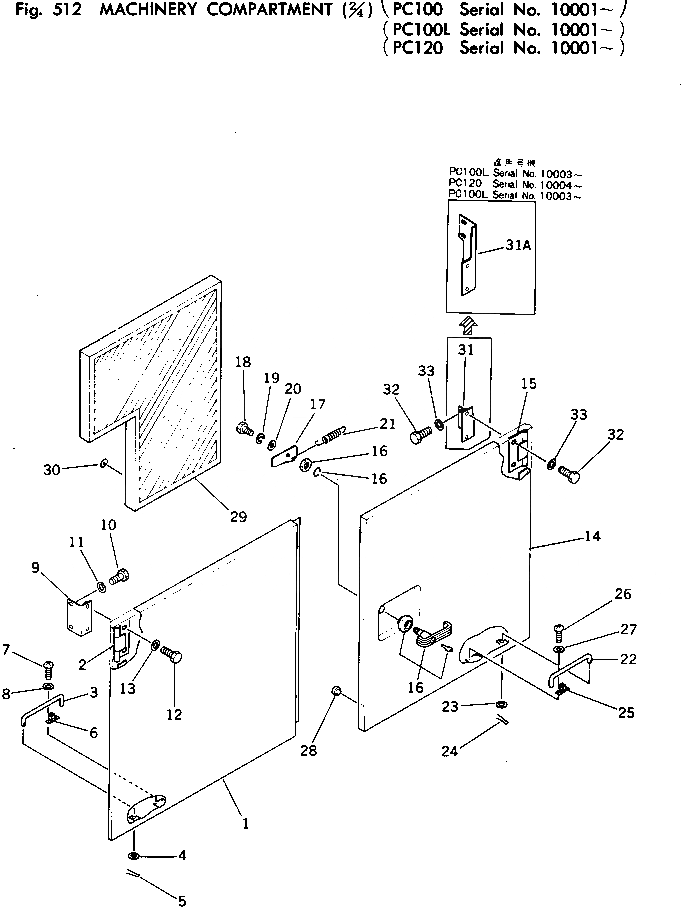

Запчасти Komatsu PC100-1 MACHINERY ОБСТАНОВКА (/) (PC) ОСНОВНАЯ РАМА И КАБИНА

|$0

203-54-00040

COVER ASS'Y

1

COVER

2

203-54-32230

HINGE (WELDED)

3

203-54-32250

BAR

4

01641-01016

WASHER

5

04050-03018

PIN,COTTER

6

20B-54-12210

SPRING

7

01220-30408

SCREW

8

01641-00405

WASHER

9

203-54-32330

BRACKET

10

01010-31025

BOLT

11

01643-31032

WASHER

12

01010-31025

BOLT

13

01643-31032

WASHER

14

203-54-00051

COVER ASS'Y

14

203-54-00050

COVER ASS'Y

14

COVER

14

COVER

15

203-54-32230

HINGE (WELDED)

16

21T-54-12310

HANDLE

16

21T-54-12180

HANDLE

17

21T-54-12320

PLATE

17

21T-54-12250

PLATE

18

01010-30820

BOLT

18

01010-30616

BOLT

19

01602-00825

WASHER,SPRING

19

01602-00619

WASHER,SPRING

20

01643-30823

WASHER

20

01643-30623

WASHER

21

135-43-14520

SPRING

22

203-54-32250

BAR

23

01641-01016

WASHER

24

04050-03018

PIN,COTTER

25

20B-54-12210

SPRING

26

01220-30408

SCREW

27

01641-00405

WASHER

28

203-54-32260

STOPPER

29

203-54-32891

WOOL,GLASS

30

04431-30000

PLATE

31

203-54-32241

BRACKET

31

203-54-32241

BRACKET

31A

203-54-32360

BRACKET

32

01010-31025

BOLT

33

01643-31032

WASHER
