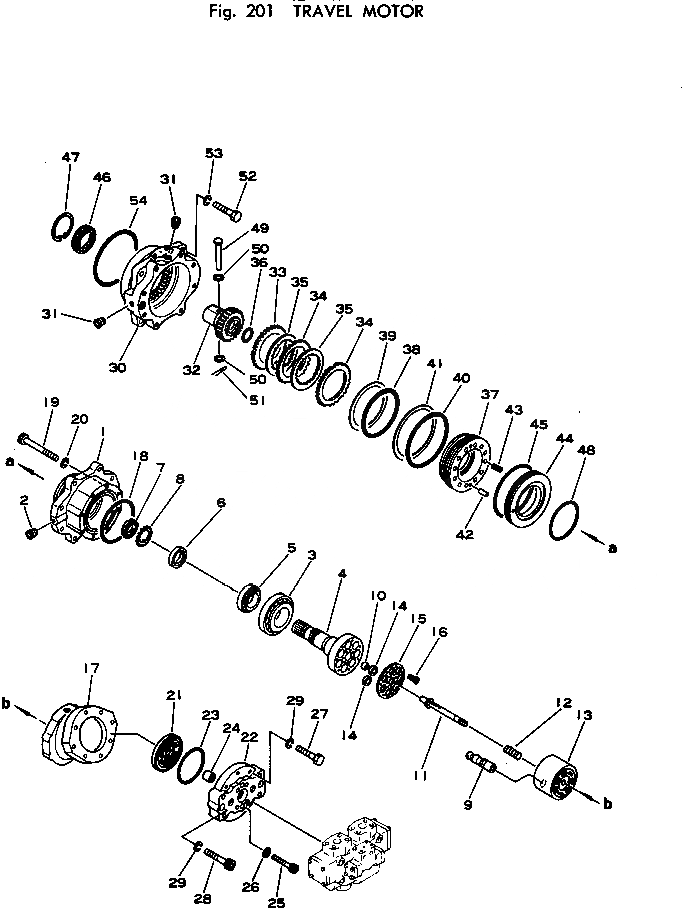

Запчасти Komatsu PC100-1 МОТОР ХОДА ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|$0

706-75-02903

TRAVEL MOTOR ASS'Y,KMFA090B

|$1

706-75-43004

MOTOR ASS'Y,KMF090

1

COVER,FRONT

2

706-73-40360

PLUG

3

BEARING

4

SHAFT,DRIVE

5

BEARING

6

RING

7

NUT

8

WASHER,LOCK

9

PISTON ASS'Y

10

BALL,CENTER

11

SHAFT

12

SPRING

13

BLOCK,CYLINDER

14

HOLDER

15

RETAINER

16

SCREW

17

CASE

18

O-RING

19

BOLT

20

WASHER,SPRING

21

PLATE,VALVE

22

COVER,END

23

O-RING

24

BEARING

25

BOLT

26

GASKET,SEAL

27

BOLT

28

BOLT

29

WASHER,SPRING

|$31

706-75-91002

PARKING BRAKE ASS'Y

30

BODY

30

BODY

31

706-73-40360

PLUG

31

706-73-40360

PLUG

32

COUPLING

33

706-75-90030

PLATE

34

706-75-91040

PLATE

35

706-75-90050

DISK

36

07000-03035

O-RING

37

PISTON

38

07000-15135

O-RING

39

706-75-91130

RING

40

07000-15155

O-RING

41

706-75-91110

RING

42

PIN

43

SPRING

44

SEAT

45

706-75-90120

O-RING

46

706-75-90180

SEAL

47

04065-08225

RING

48

07000-02105

O-RING

49

706-75-90160

PIN

50

01641-00608

WASHER

51

04050-01610

PIN,COTTER

52

01010-61445

BOLT

53

01602-01442

WASHER,SPRING

54

07000-05175

O-RING
