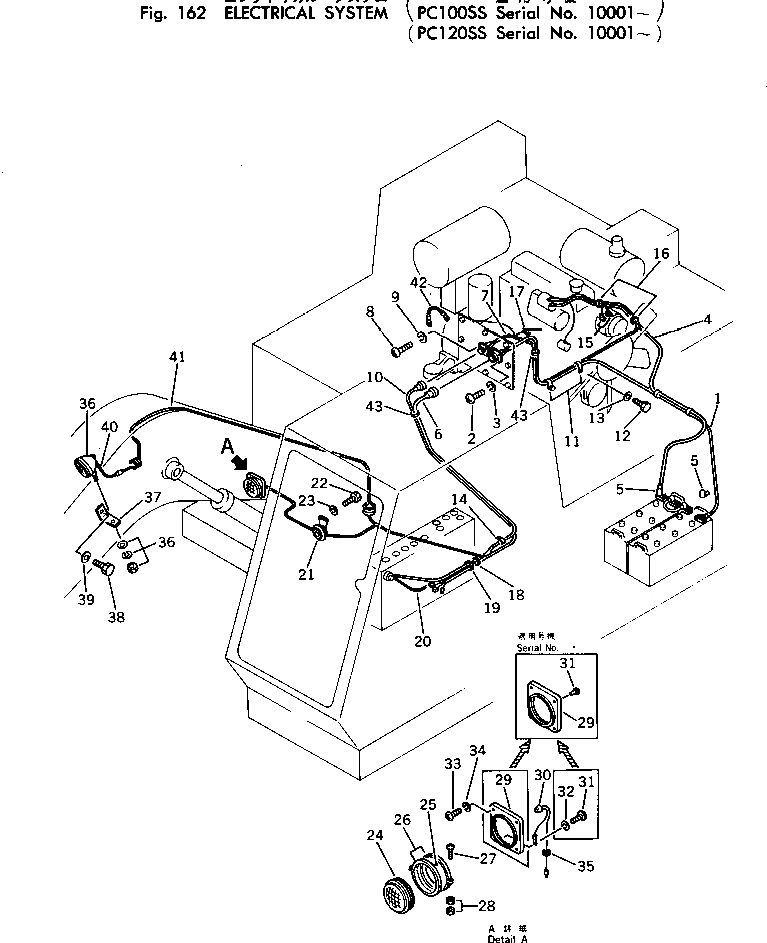

Запчасти Komatsu PC100-1 ЭЛЕКТРИКА (PCSS) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

203-06-86151

WIRE

2

01220-40412

SCREW

3

01601-20410

WASHER

4

08028-13175

WIRE

5

08038-06031

CAP

6

203-06-86141

WIRE

7

203-06-86130

WIRE

8

01220-40312

SCREW

9

01601-20307

WASHER

10

203-06-86120

WIRE ASS'Y

11

08036-03014

CLIP

12

01010-31025

BOLT

13

01643-31032

WASHER

14

08036-01814

CLIP

15

08038-00519

CAP

16

08034-00414

BAND

17

08036-10610

CLIP

18

08034-00823

BAND

19

206-54-15750

SEAL

20

08028-13150

WIRE

21

175-06-39170

HORN

22

01010-30816

BOLT

23

01602-00825

WASHER

|$23

203-06-31300

LAMP ASS'Y

24

08113-02480

BULB, 80W

25

08128-00003

HOLDER

26

08128-00004

BAND

27

01220-40420

SCREW

28

01580-10403

NUT

29

203-06-31341

BASE

29

203-06-31340

BASE

30

175-06-23230

SOCKET

31

01220-30408

SCREW

31

04400-00412

RIVET

32

01601-00410

WASHER

33

01220-30816

SCREW

34

01602-00825

WASHER

35

08037-01610

GROMMET

36

08128-32400

LAMP

36

08113-02480

BULB, 80W

36

08128-00003

HOLDER

36

08128-00004

BAND

37

203-06-21290

PLATE

38

01010-31430

BOLT

39

01643-31445

WASHER

40

205-06-51390

CABLE

41

203-06-21331

WIRE

42

08028-12045

CABLE

43

08034-00414

BAND
