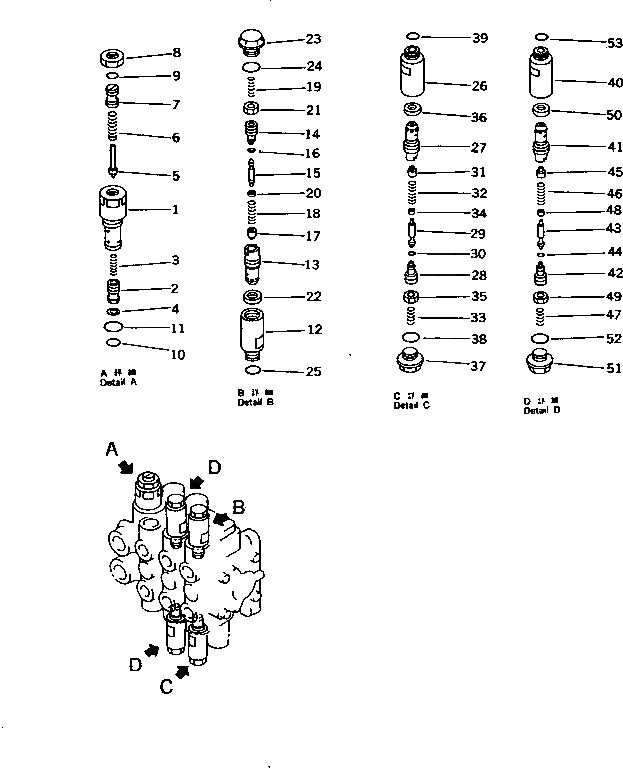

Запчасти Komatsu PC10-7 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (3-Х СЕКЦИОНН.) (/) (ДЛЯ ROWER НАКЛОН. МЕХАНИЧ. ОТВАЛ С ИЗМ. УГЛОМ ПОВОРОТА) ГИДРАВЛИКА

|$0

709-33-13300

VALVE ASS'Y

|$1

700-28-51000

VALVE ASS'Y,MAIN RELIEF

1

SLEEVE

2

VALVE

3

700-20-51430

SPRING

4

700-20-51240

RING

5

700-80-61190

POPPET

6

700-20-51350

SPRING

7

700-20-51340

SCREW

8

01583-11408

NUT

9

07000-02011

O-RING

10

700-22-11410

O-RING

11

07002-02434

O-RING

|$13

709-30-62201

VALVE ASS'Y,SUCTION AND SAFETY

12

709-30-62110

SLEEVE

13

VALVE

14

SCREW

15

PISTON

16

O-RING

17

POPPET

18

SPRING

19

700-20-62170

SPRING

20

SEAL

21

NUT

22

SEAL

23

709-30-62150

PLUG

24

07002-12034

O-RING

25

07002-02034

O-RING

|$28

709-30-62701

VALVE ASS'Y,SUCTION AND SAFETY

26

709-30-62110

SLEEVE

27

VALVE

28

SCREW

29

PISTON

30

O-RING

31

POPPET

32

SPRING

33

700-20-62170

SPRING

34

SEAL

35

NUT

36

SEAL

37

709-30-62150

PLUG

38

07002-12034

O-RING

39

07002-02034

O-RING

|$43

709-30-62601

VALVE ASS'Y,SUCTION AND SAFETY

40

709-30-62110

SLEEVE

41

VALVE

42

SCREW

43

PISTON

44

O-RING

45

POPPET

46

SPRING

47

700-20-62170

SPRING

48

SEAL

49

NUT

50

SEAL

51

709-30-62150

PLUG

52

07002-12034

O-RING

53

07002-02034

O-RING
