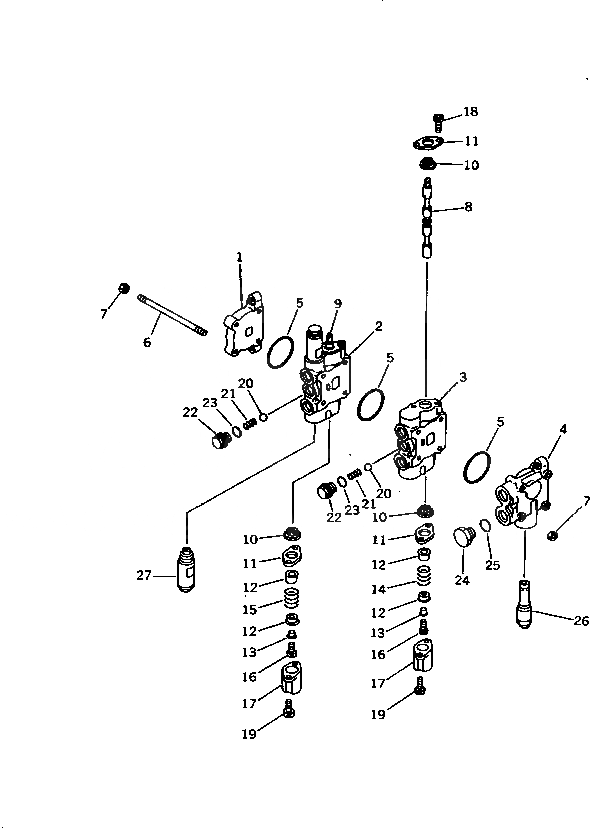

Запчасти Komatsu PC10-7 ГИДРАВЛ КОНТРОЛЬНЫЙ КЛАПАН (2-Х СЕЦИОНН.)(/)(№-777) ГИДРАВЛИКА

|$0

709-32-13700

VALVE ASS'Y

1

COVER

2

BLOCK

3

BLOCK

4

BLOCK

5

07000-12055

O-RING

6

709-32-11510

STUD

7

01580-10806

NUT

8

SPOOL,BLADE

9

SPOOL,SWING

10

709-32-11530

SEAL

11

709-32-11540

PLATE

12

709-32-11550

RETAINER

13

709-32-11560

COLLAR

14

709-32-11590

SPRING

15

709-32-11580

SPRING

16

01252-30620

BOLT

17

709-32-11570

COVER

18

01252-30610

BOLT

19

01252-30616

BOLT

20

04260-01270

BALL

21

709-32-11820

SPRING

22

709-32-11810

PLUG

23

07002-11823

O-RING

24

07040-12012

PLUG

25

07002-02034

O-RING

26

700-22-51001

VALVE ASS'Y,MAIN RELIEF

27

709-30-62601

VALVE ASS'Y,SUCTION AND SAFETY
