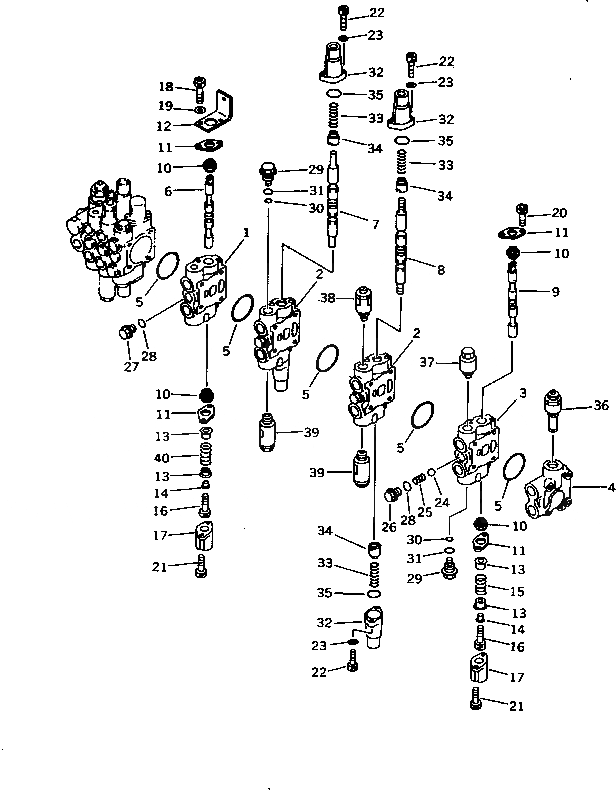

Запчасти Komatsu PC10-7 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (7-СЕКЦИОНН.)(/)(№7777-) ГИДРАВЛИКА

|1

709-37-13301

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

BLOCK

5

07000-12055

O-RING

6

SPOOL,R.H. TRAVEL

7

SPOOL,BUCKET

8

SPOOL,BOOM

9

SPOOL,BOOM SWING

10

709-32-11530

SEAL,DUST

11

709-32-11540

PLATE

12

709-32-12890

PLATE

13

709-32-11550

RETAINER

14

709-32-11560

COLLAR

15

709-32-11580

SPRING

16

01252-30620

BOLT

17

709-32-11570

COVER

18

01252-30618

BOLT

19

01643-30623

WASHER

20

01252-30610

BOLT

21

01252-30616

BOLT

22

01252-30622

BOLT

23

01641-20608

WASHER

24

04260-01270

BALL

25

709-32-11820

SPRING

26

709-32-11810

PLUG

27

709-32-11930

PLUG

28

07002-11823

O-RING

29

709-32-11830

PLUG

30

709-32-11840

O-RING

31

07002-02034

O-RING

32

709-32-12851

CASE

33

709-32-13510

SPRING

34

709-32-12840

RETAINER

35

709-32-11760

O-RING

36

700-26-55000

RELIEF VALVE ASS'Y,MAIN RELIEF

37

709-30-61100

VALVE ASS'Y,SUCTION

38

709-30-65300

VALVE ASS'Y,SAFETY

39

709-30-62301

VALVE ASS'Y,SUCTION AND SAFETY

40

709-32-11590

SPRING
