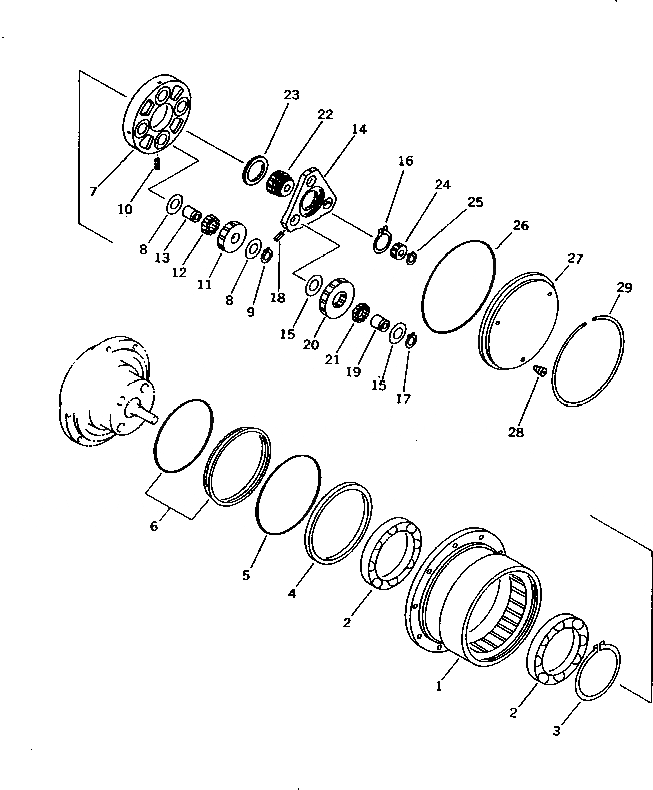

Запчасти Komatsu PC10-7 МОТОР ХОДА (/)(№-777) НИЖНЯЯ ГИДРОЛИНИЯ И ЛИНИЯ ХОДА

|1

20N-60-42200

MOTOR ASS'Y

1

FUFRP101901

BODY

2

FU105BA14

BEARING

3

FUFRP101522

RING,SNAP

4

FUFRP44812

SEAL,RING

5

20N-60-31680

O-RING (K7)

6

20N-60-31690

FLOATING SEAL ASS'Y

|7

FUGHC2N11015

CARRIER ASS'Y

|7

20N-60-42300

CARRIER ASS'Y

7

FUFRP101503

CARRIER

8

20N-60-31720

THRUST WASHER,THRUST

9

04064-02512

RING,SNAP

10

04025-00420

PIN,SPRING

11

FUFRP101506

GEAR

12

FUFRP101519

NEEDLE

13

FUFRP101510

PIN

|14

FUGHC2N21015

CARRIER ASS'Y

|14

20N-60-42400

CARRIER ASS'Y

14

FUFRP101504

CARRIER

15

20N-60-31720

THRUST WASHER,THRUST

16

04064-03015

RING,SNAP

17

04064-02512

RING,SNAP

18

04025-00420

PIN,SPRING

19

FUFRP336215

PIN

20

FUFRP101507

GEAR

21

FUFRP448220

NEEDLE

22

FUFRP101508

GEAR

23

20N-60-42230

RING,THRUST

24

FUFRP101509

GEAR

25

20N-60-31740

RING,SNAP

26

20N-60-42240

O-RING (K7)

27

20N-60-42210

COVER

28

07043-00312

PLUG

29

20N-60-42220

RING,SNAP
