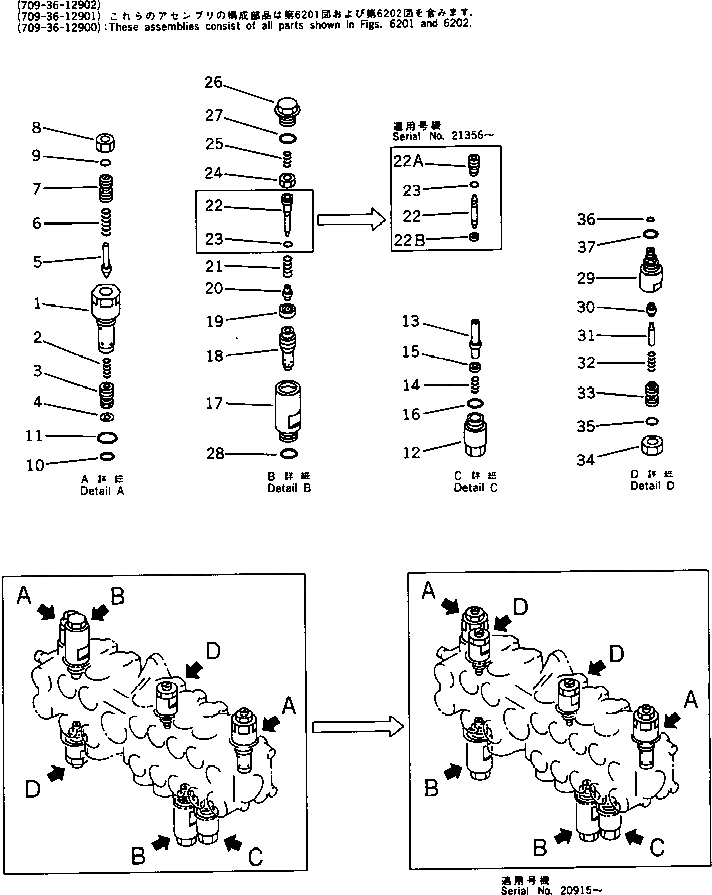

Запчасти Komatsu PC10-6 6-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-36-12902

VALVE ASS'Y

|$1

709-36-12901

VALVE ASS'Y

|$2

709-36-12900

VALVE ASS'Y

|$3

700-22-51001

VALVE ASS'Y,MAIN RELIEF

1

SLEEVE

2

700-20-51430

SPRING

3

VALVE

4

700-20-51240

RING

5

700-80-61190

POPPET

6

700-20-51350

SPRING

7

700-20-51340

SCREW

8

01583-11408

NUT

9

07000-02011

O-RING

10

700-22-11410

O-RING

11

07002-02434

O-RING

|$15

709-30-61100

VALVE ASS'Y,SUCTION

12

709-30-61110

SLEEVE

13

VALVE

14

700-20-62170

SPRING

15

SEAL

16

07002-02034

O-RING

|$21

709-30-62301

VALVE ASS'Y,SUCTION AND SAFETY

|$22

709-30-62300

VALVE ASS'Y,SUCTION AND SAFETY

17

709-30-62110

SLEEVE

18

VALVE

18

VALVE

19

SEAL

20

POPPET

20

POPPET

21

SPRING

22

PISTON

22

PISTON

22A

SCREW

22B

SEAL

23

O-RING

24

NUT

25

700-20-62170

SPRING

26

709-30-62150

PLUG

27

07002-12034

O-RING

28

07002-02034

O-RING

|$40

709-30-65300

VALVE ASS'Y,SAFETY

29

SLEEVE

30

POPPET

30

POPPET

31

PISTON

32

SPRING

33

SCREW

34

NUT

35

O-RING

36

709-32-11840

O-RING

37

07002-02034

O-RING
