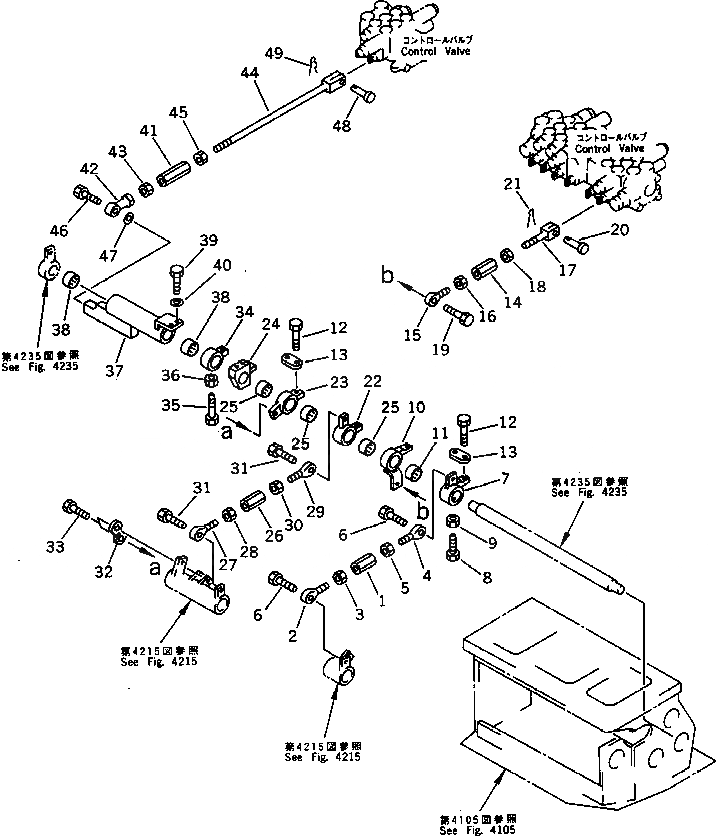

Запчасти Komatsu PC10-6 ПОВОРОТН. И РУКОЯТЬ МЕХ-М УПРАВЛ-Я (/) (ДЛЯ -WAY УПРАВЛ-Е) СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

1

20C-43-12860

BUCKLE,TURN

2

20C-43-12820

END,ROD

3

01508-20805

NUT,L.H. THREAD

4

20C-43-12810

END,ROD

5

01580-10806

NUT

6

01010-50818

BOLT

7

20C-43-12760

LEVER

8

20C-43-12360

BOLT

9

01580-10806

NUT

10

20P-43-13340

LEVER

11

195-61-34140

BEARING

12

01010-50820

BOLT

13

20N-43-43181

PLATE

14

20C-43-12860

BUCKLE,TURN

15

20C-43-12810

END,ROD

16

01580-10806

NUT

17

20P-43-13570

YOKE

18

01508-20805

NUT,L.H. THREAD

19

01010-50818

BOLT

20

04205-10520

PIN

21

04050-11208

PIN,COTTER

22

20C-43-12740

LEVER

23

20P-43-13330

LEVER

24

20P-43-13321

LEVER

25

195-61-34140

BEARING

26

20C-43-12860

BUCKLE,TURN

27

20C-43-12810

END,ROD

28

01580-10806

NUT

29

20C-43-12820

END,ROD

30

01508-20805

NUT,L.H. THREAD

31

01010-50818

BOLT

32

20W-43-12710

END,ROD

33

01010-50818

BOLT

34

20C-43-12710

LEVER

35

20C-43-12360

BOLT

36

01580-10806

NUT

37

20P-43-13310

LEVER

38

195-61-34140

BEARING

39

01010-50820

BOLT

40

01643-30823

WASHER

41

20S-43-31270

BUCKLE,TURN

42

04252-21061

END,ROD

43

01582-11008

NUT

44

20P-43-13551

ROD

45

01508-21006

NUT,L.H. THREAD

46

01010-51030

BOLT

47

01643-31032

WASHER

48

04205-10520

PIN

49

04052-10530

PIN,COTTER
